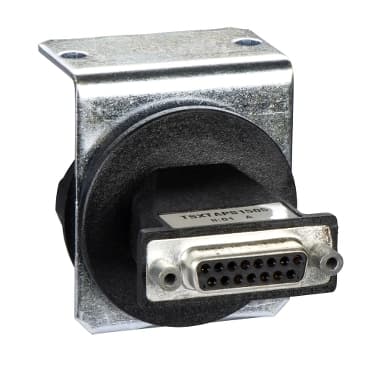

TSXTAPS1505
Product ID:34788
Updated: 2026/4/3
Key Features
- 1Ensure reliable 5V DC RS422 signal transmission for incremental encoders. 2、Reduce downtime with a durable, industrial-grade connection interface. 3、Simplify installation using secure and compatible connector design. 4、Lower long-term costs through reduced maintenance and high reliability. 5、Meet strict industry standards for safety and electrical performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Accessory / separate part designation | Connection interface for incremental encoder |
| accessory / separate part type | Connection interface | accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Encoder 5 V DC RS422 | Product Compatibility | TSXCTY2C<br />TSXCAY33<br />TSXCTZ2A<br />TSXCTY4A<br />TSXCAY22<br />TSXCTY2A<br />TSXCTZ1A<br />TSXCAY41<br />TSXCTZ2AA<br />TSXCAY21<br />TSXCAY42<br />TSXCCY1128 |
| Electrical connection | 1 connector SUB-D 15 module side) | Physical interface | RS485<br />RS422 |
| Net Weight | 0.57 lb(US) (0.26 kg) |
Specifications may be subject to change without notice
