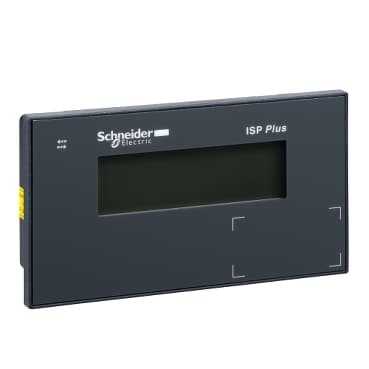

TSXXBTN410
Product ID:34793
Updated: 2026/7/14
Key Features
- 1Optimize equipment performance with advanced control and communication.
- 2Withstand tough environments through rugged construction.
- 3Achieve precise control via high-speed processing and real-time data.
- 4Enable flexible programming with modular design and multiple language options.
- 5Support complex strategies with distributed control architecture for scalability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Weight indicator |
| Display Type | Backlit LCD | Display colour | Green |
| Messages display capacity | 1 line of 5 characters (17.36 x 11.8 mm) minimum<br />4 lines of 20 characters (4.34 x 2.95 mm) maximum<br />2 lines of 10 characters (8.38 x 5.9 mm) for weighing applications | [Us] rated supply voltage | 24 V DC non isolated |
| Supply | External source | Supply voltage limits | 18…30 V |
| Residual ripple | 1200 mV | Power Consumption in W | 5 W |
| Number of key | 8 | marking | CE |
| Height | 2.9 in (74 mm) | Width | 5.2 in (132 mm) |
| Depth | 4.09 in (104 mm) | Net Weight | 0.84 lb(US) (0.38 kg) |
| Standards | EN/IEC 61131-2<br />CSA C22.2 No 14<br />EN/IEC 60068-2<br />UL 508 | Product Certifications | ATEX zone 2/22<br />CSA Class 1 Division 2<br />UL Class 1 Division 2 |
| Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| IP degree of protection | IP20 EN/IEC 60529 rear panel)<br />IP65 EN/IEC 60529 | NEMA degree of protection | NEMA 4X front panel outdoor use) |
Specifications may be subject to change without notice
