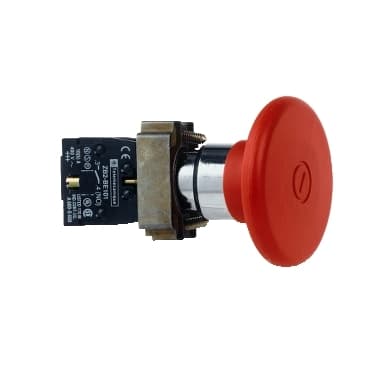

XB2BX42
Product ID:34804
Updated: 2026/4/8
Key Features
- 1Ensure durability and reliability with premium materials. 2、Achieve superior performance using cutting-edge technology. 3、Simplify installation for reduced downtime and higher productivity. 4、Protect against hazards with robust safety features. 5、Integrate flexibly across a wide range of systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Complete emergency switching off push-button | Device short name | XB2 |
| Mounting diameter | 0.9 in (22 mm) | Operating position | Any position |
| Device mounting | Fixing hole 0.9 in (22 mm) | Fixing center | >= 30 x 40 mm panel) 0.04…0.2 in (1…5 mm) |
| Shape of signaling unit head | Round | Type of operator | push-pull |
| Reset | Push-pull | Operator profile | Red mushroom Ø 60 mm |
| Contacts type and composition | 1 NC | Contact operation | Slow-break |
| Positive opening | With NC contact | Mechanical durability | 100000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm²<br />Screw clamp terminal, <= 1 x 2.5 mm²<br />Screw clamp terminal, >= 1 x 0.5 mm² | Tightening torque | 7.08 lbf.in (0.8 N.m) |
| Short-circuit protection | 10 A gL fuse IEC 60269-1 | [Ui] rated insulation voltage | 600 VIEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A600<br />0.27 A 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A 230 V 60 cyc/mn 0.5 IEC 60947-5-4<br />500000 cycles, DC-13, 0.2 A 110 V 60 cyc/mn 0.5 IEC 60947-5-4 | Electrical reliability | Λ < 10exp(-8) 24 V |
| Height | 1.2 in (30 mm) | Width | 1.7 in (42 mm) |
| Depth | 2.9 in (74.2 mm) | Net Weight | 0.194 lb(US) (0.088 kg) |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) | Overvoltage category | Class I IEC 536 |
| Vibration resistance | 10 gn 40…500 Hz)IEC 60068-2-6 | Shock resistance | 70 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
