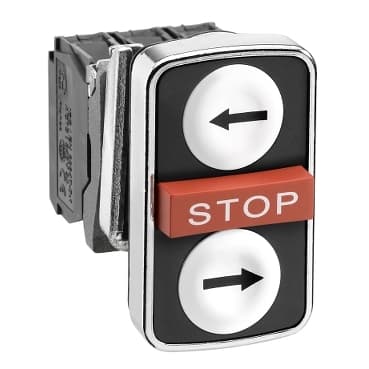

XB4BA711137
Product ID:34873
Updated: 2026/4/8
Key Features
- 1Construct a durable switch with a chromium-plated metal bezel and silver alloy contacts. 2、Simplify installation using the spring return green operator and Zamak fixing collar. 3、Apply this versatile XB4BA711137 switch to control panels and machinery. 4、Ensure reliable operation with slow-break silver alloy contacts. 5、Withstand harsh industrial environments using high-quality materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Triple-headed push-button |
| Device short name | XB4 | Bezel material | Chromium plated metal |
| Fixing collar material | Zamak | Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | Red projecting, STOP white)<br />White flush, left arrow black)<br />White flush, right arrow black) |
| Operators description | White ''right arrow'' - white ''left arrow'' - red ''STOP'' | Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1<br />Spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Net Weight | 0.282 lb(US) (0.128 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Colour of marking | White marking when green, red or black caps<br />Black marking when white caps | Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state<br />3.8 N NO changing electrical state | Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Device presentation | Complete product | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP69K IEC 60529<br />IP69 IEC 60529 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-5<br />IEC 60947-5-4<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />DNV<br />UL Listed<br />GL |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
