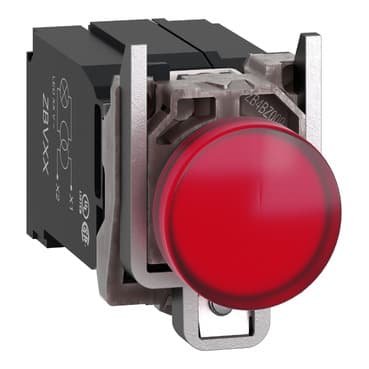

XB4BV5B4
Product ID:34939
Updated: 2026/4/8
Key Features
- 1Deploy high-performance components for demanding applications. 2、Utilize advanced thermal management for optimal efficiency. 3、Ensure durability in harsh environments with robust construction. 4、Integrate easily with existing systems for seamless operation. 5、Meet industry standards for reliability and safety compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Pilot light |
| Device short name | XB4 | Bezel material | Chromium plated metal |
| Fixing collar material | Zamak | Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | cap/operator or lens colour | Red |
| Operator additional information | With plain lens | Light source | Universal LED |
| Bulb base | Integral LED | Light block supply | Via transformer 1.2 VA 24 V |
| Light source colour | Red | [Us] rated supply voltage | 400 V AC 50 Hz |
| CAD overall width | 1.6 in (40 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 3.5 in (90 mm) | Net Weight | 0.379 lb(US) (0.172 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | Signalling type | Steady |
| Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
| Device presentation | Complete product | Supply voltage limits | 407…423 V AC |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) | Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | IEC 60947-1<br />IEC 60947-5-5<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
| Product Certifications | UL Listed<br />CSA | Vibration resistance | 2 gn 12…500 Hz)IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
