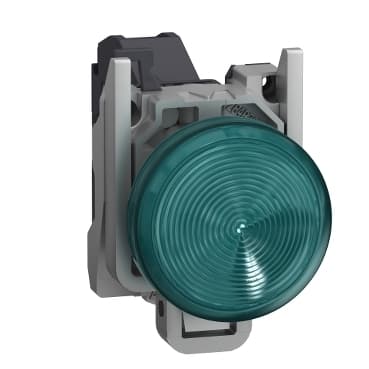

XB4BVBM3GEX
Product ID:34963
Updated: 2026/4/8
Key Features
- 1Reduce energy consumption with a high-efficiency design. 2、Integrate easily into compact panels due to lightweight construction. 3、Utilize a wide input voltage range for global application versatility. 4、Extend product lifespan via advanced thermal management systems. 5、Ensure operational reliability by meeting international safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete pilot light |
| Device short name | XB4 | Bezel material | Chromium plated metal |
| Fixing collar material | Zamak | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Dust zone | Zone 21 - 22 |
| Gas zone | Zone 1 - 2 | Operator additional information | With plain lens |
| Width | 1.8 in (46.2 mm) | Height | 1.2 in (30 mm) |
| Depth | 2.7 in (69 mm) | Net Weight | 0.183 lb(US) (0.083 kg) |
| Device mounting | Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm IEC 60947-1 | Fixing center | >= 30 x 40 mm support panel) 0.04…0.2 in (1…6 mm) |
| Embedding Depth | 2.3 in (58 mm) | marking | Ex tb IIIC Db<br />II 2 GD<br />Ex eb mb IIC Gb |
| Shape of signaling unit head | Round | cap/operator or lens colour | Green |
| Connections - terminals | Screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1 | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Signalling type | Steady | Light source | Integral LED |
| Light source colour | Green | [Us] Rated Supply Voltage | 24...254 V AC/DC |
| Service life | 100000 h | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -4…167 °F (-20…75 °C) |
| Overvoltage category | I IEC 60536 | IP degree of protection | IP65 IEC 60529 |
| Standards | IEC 60079-0:2009<br />IEC 60079-7:2009<br />EN/IEC 60079-18:2009<br />IEC 60079-31:2009<br />UL 60079-0<br />UL 60079-18<br />UL 60079-31<br />ANSI/ISA 12.12.01<br />CSA C22.2 No 213 | Product Certifications | INERIS 04ATEX9003U |
Specifications may be subject to change without notice
