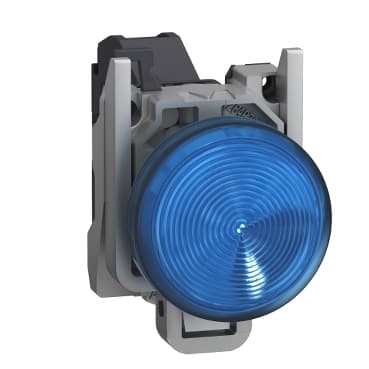

XB4BVBM6GEX
Product ID:34966
Updated: 2026/4/8
Key Features
- 1Ensure reliable power distribution in demanding industrial applications. 2、Install easily in confined spaces with a compact, durable design. 3、Optimize performance in harsh conditions with advanced thermal management. 4、Customize and scale your system using the modular design framework. 5、Meet global safety standards for secure and compliant operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete pilot light |
| Device short name | XB4 | Bezel material | Chromium plated metal |
| Fixing collar material | Zamak | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Dust zone | Zone 21 - 22 |
| Gas zone | Zone 1 - 2 | Operator additional information | With plain lens |
| Width | 1.8 in (46.2 mm) | Height | 1.2 in (30 mm) |
| Depth | 2.7 in (69 mm) | Net Weight | 0.183 lb(US) (0.083 kg) |
| Device mounting | Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm IEC 60947-1 | Fixing center | >= 30 x 40 mm support panel) 0.04…0.2 in (1…6 mm) |
| Embedding Depth | 2.3 in (58 mm) | marking | II 2 GD<br />Ex tb IIIC Db<br />Ex eb mb IIC Gb |
| Shape of signaling unit head | Round | cap/operator or lens colour | Blue |
| Connections - terminals | Screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1 | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Signalling type | Steady | Light source | Integral LED |
| Light source colour | White | [Us] Rated Supply Voltage | 24...254 V AC/DC |
| Service life | 100000 h | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -4…167 °F (-20…75 °C) |
| Overvoltage category | I IEC 60536 | IP degree of protection | IP65 IEC 60529 |
| Standards | IEC 60079-0:2009<br />IEC 60079-7:2009<br />EN/IEC 60079-18:2009<br />IEC 60079-31:2009<br />UL 60079-0<br />UL 60079-18<br />UL 60079-31<br />ANSI/ISA 12.12.01<br />CSA C22.2 No 213 | Product Certifications | INERIS 04ATEX9003U |
Specifications may be subject to change without notice
