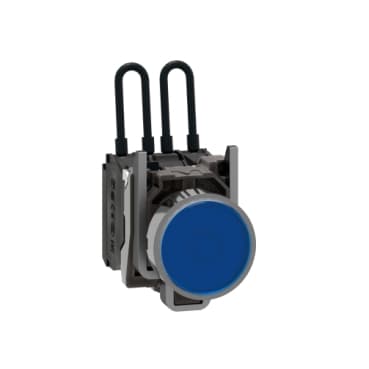

XB4BW26B5
Product ID:35086
Updated: 2026/4/8
Key Features
- 1Deliver high-performance power for demanding industrial applications. 2、Ensure reliable operation with minimal downtime risk. 3、Integrate easily using compact and lightweight design. 4、Meet or exceed all industry safety and quality standards. 5、Deploy in industrial, commercial, and residential settings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Push-to-test pilot light |
| Device short name | XB4 | Bezel material | Metal |
| Fixing collar material | Metal | Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 | Height | 1.7 in (42 mm) |
| Width | 1.2 in (30 mm) | Depth | 2.2 in (55 mm) |
| Net Weight | 0.20 lb(US) (0.09 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Embedding Depth | 1.7 in (43 mm) | Shape of signaling unit head | Round |
| cap/operator or lens colour | Blue | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60068-2-27<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60068-2-27 |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | Signalling type | Steady |
| Light source | Universal LED | Light source colour | Blue |
| current consumption | 18 mA | Service life | 1.5 year(s) |
| Surge withstand | 1 kV | [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60536<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13 IEC 60529<br />NEMA 4X |
| IK degree of protection | IK05 conforming to IEC 50102 | Standards | CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />GB 14048.5<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 |
| Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV | Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-6<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-6 |
Specifications may be subject to change without notice
