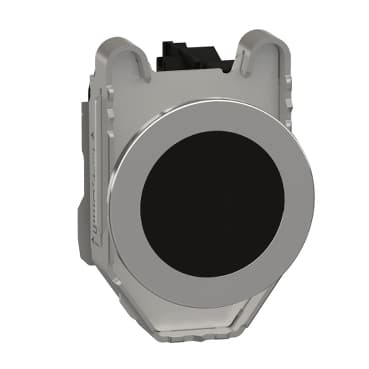

XB4FA21
Product ID:35010
Updated: 2026/4/8
Key Features
- 1Ensure high reliability and durability for demanding industrial environments. 2、Utilize a compact design for space-efficient control panel installations. 3、Access advanced power distribution with multiple circuit options. 4、Meet or exceed international electrical safety standards. 5、Integrate easily with existing Schneider systems for seamless operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Device short name | XB4F |
| Product or Component Type | Push-button | Product Compatibility | ZBYF...<br />ZBZF32<br />ZBZF33 |
| Bezel material | Chromium plated metal | Fixing collar material | Zamak |
| Mounting diameter | 1.2 in (30.5 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Black flush, unmarked | Head type | Built-in-flush |
| Contacts type and composition | 1 NO | Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 | Height | 1.9 in (47 mm) |
| Width | 1.4 in (36.6 mm) | Depth | 2.2 in (55 mm) |
| Terminals description ISO n°1 | (13-14)NO | Net Weight | 0.256 lb(US) (0.116 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Device mounting | Built-in |
| Fixing mode | By screws | Contacts usage | Standard contacts |
| Positive opening | Without | Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
| Operating force | 3.8 N NO changing electrical state | Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Device presentation | Complete product | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
