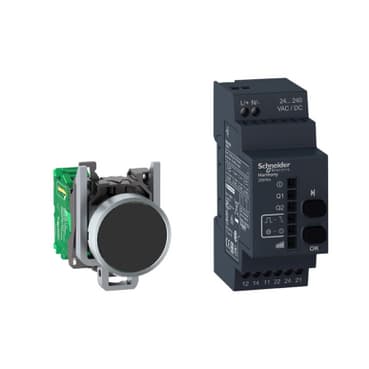

XB4RFA02
Product ID:35212
Updated: 2026/7/20
Key Features
- 1Ensure high reliability and durability for continuous operation.
- 2Integrate easily with a compact, space-saving design.
- 3Deliver robust, consistent power under demanding heavy loads.
- 4Meet stringent IEC and UL industrial safety standards.
- 5Connect seamlessly with versatile options for existing systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4R | Product or Component Type | Wireless and batteryless package |
| Device short name | XB4R | Head material | Metal |
| frequency | 2405 MHz transmitter<br />2405 MHz receiver | emission class | 5M00G7W |
| Antenna type | Omnidirectional | Control type | Wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
| Type of receiver | Programmable receiver 2 relays) | [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| Kit composition | 1 0.9 in (22 mm)<br />1 push-button head 0.9 in (22 mm)<br />1 receiver<br />1 set of caps<br />1 fixing collars<br />1 transmitter | Status LED | 1 LED Green power ON<br />2 LEDs Green relay ON<br />2 LEDs Green function mode<br />1 LED green and yellow reception signal |
| Communication port protocol | Zigbee IEEE 802.15.4 | Max power consumption in W | 1 mW |
| Number of Channels | 1 | Modulation technique | O-QPSK |
| Bandwidth | 5 MHz | Antenna gain | 0 dBi |
| Customizable | No | compatibility code | XB4R |
| [Us] rated supply voltage | 24...240 V | Product Certifications | GOST<br />CCC<br />CSA<br />UL<br />C-tick |
| marking | CE | Standards | IEC 60947-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508 |
| Radio agreement | ANATEL<br />FCC<br />RSS<br />ARIB T66<br />ICASA<br />SRRC |
Specifications may be subject to change without notice
