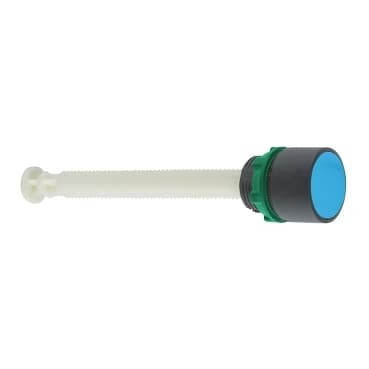

XB5AA86202
Product ID:35351
Updated: 2026/4/7
Key Features
- 1Reset manual overloads with a 120-257mm actuation distance. 2、Ensure reliable operation in demanding and harsh industrial environments. 3、Install easily with a flush, blue, and 22mm marked design. 4、Achieve long-lasting durability through robust construction. 5、Meet industry standards for safety and performance compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Manual overload reset push-button |
| Device short name | XB5 | Bezel material | Dark grey plastic |
| Fixing collar material | Plastic | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Shape of signaling unit head | Round |
| Operator profile | Blue flush, R white) | Activating distance | 4.7…10.1 in (120…257 mm) |
| Device presentation | Complete product | Height | 1.1 in (29 mm) |
| Width | 1.1 in (29 mm) | Depth | 10.1 in (257 mm) |
| Net Weight | 0.09 lb(US) (0.04 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Operating travel | 0.4 in (10 mm) | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-1 | Product Certifications | UL Listed |
Specifications may be subject to change without notice
