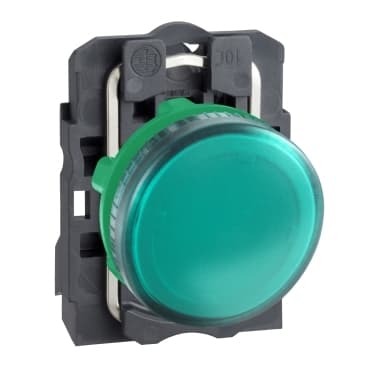

XB5AV63
Product ID:35469
Updated: 2026/4/7
Key Features
- 1Withstand harsh environments with robust plastic construction. 2、Assemble and disassemble quickly for easy maintenance. 3、Connect via screw clamp, Faston, spring terminal, or PCB. 4、Reduce carbon footprint with sustainable recycled packaging. 5、Operate reliably at high voltages up to 250V.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Pilot light |
| Device short name | XB5 | Bezel material | Dark grey plastic |
| Fixing collar material | Plastic | Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | cap/operator or lens colour | Green |
| Operator additional information | With plain lens | Light source | Bulb not included |
| Bulb base | BA 9s | Light block supply | Direct <2.4 W |
| Light source colour | Green | [Us] rated supply voltage | <= 250 V |
| Height | 1.7 in (42 mm) | Width | 1.2 in (30 mm) |
| Depth | 2.2 in (55 mm) | Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.082 lb(US) (0.037 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 | Signalling type | Steady |
| Device presentation | Complete product | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Electrical shock protection class | Class II IEC 60536 | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK05 conforming to IEC 50102 | Standards | UL 508<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />JIS C8201-1 |
| Product Certifications | CSA<br />UL Listed | Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
