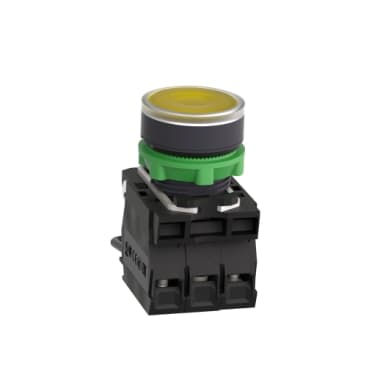

XB5AW28G5
Product ID:35392
Updated: 2026/4/7
Key Features
- 1Reduce energy consumption with a high-efficiency LED design. 2、Install easily in tight spaces due to a compact, lightweight form factor. 3、Ensure durability in harsh industrial environments with robust construction. 4、Utilize versatile input voltage options for broad application compatibility. 5、Operate reliably by meeting stringent international safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Push-to-test pilot light |
| Device short name | XB5 | Bezel material | Plastic |
| Fixing collar material | Plastic | Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 | Height | 1.7 in (42 mm) |
| Width | 1.2 in (30 mm) | Depth | 2.2 in (55 mm) |
| Net Weight | 0.104 lb(US) (0.047 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Embedding Depth | 1.8 in (46 mm) | Shape of signaling unit head | Round |
| cap/operator or lens colour | Amber | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | Signalling type | Steady |
| Light source | Universal LED | Light source colour | Amber |
| [Us] rated supply voltage | 110...120 V AC 50/60 Hz | current consumption | 14 mA |
| Service life | 1.5 year(s) | Surge withstand | 1 kV |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />GB 14048.5<br />IEC 60947-5-1<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
| Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
