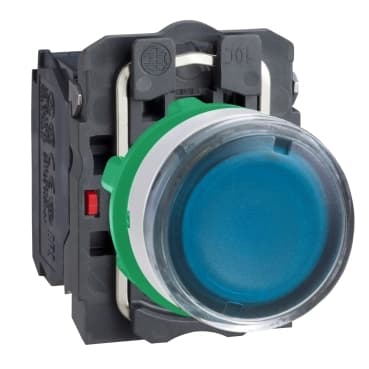

XB5AW36M5C1
Product ID:35528
Updated: 2026/4/7
Key Features
- 1Ensure high reliability and durability for critical applications. 2、Achieve efficient power management with advanced circuitry. 3、Provide comprehensive protection against overloads and short circuits. 4、Design for medium voltage switchgear applications. 5、Maintain compatibility with a wide range of electrical systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Illuminated push-button |
| Device short name | XB5 | Bezel material | Plastic colour plated white |
| Fixing collar material | Plastic | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Blue flush, unmarked | Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 | Light source | Protected LED |
| Bulb base | Integral LED | [Us] rated supply voltage | 220...240 V AC 50/60 Hz |
| cap/operator or lens colour | Blue | Height | 1.7 in (42 mm) |
| Width | 1.2 in (30 mm) | Depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (13-14)NO<br />(21-22)NC | Net Weight | 0.123 lb(US) (0.056 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Contacts usage | Standard contacts |
| Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state<br />3.8 N | Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 | Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A EN/IEC 60947-5-1 | [Ui] rated insulation voltage | 600 V 3)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV EN/IEC 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1<br />6 A 120 V, AC-15, A600 EN/IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Signalling type | Steady | Supply voltage limits | 195…264 V AC |
| current consumption | 14 mA | Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 | Device presentation | Complete product |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK05 conforming to IEC 50102 | Product Certifications | DNV<br />LROS (Lloyds register of shipping)<br />BV<br />GL<br />UL Listed<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
