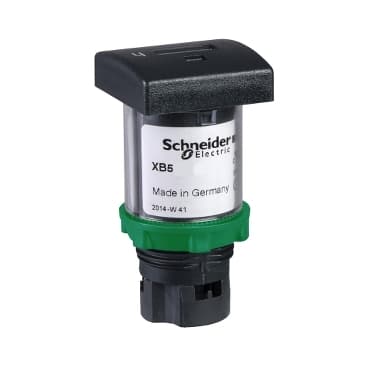

XB5DSB
Product ID:35538
Updated: 2026/7/19
Key Features
- 1Track up to 99,999 hours with a robust 5-digit mechanical display.
- 2Connect easily via screw clamp, connector, Faston, spring terminal, or PCB.
- 3Withstand harsh industrial environments with a durable enclosure design.
- 4Operate on versatile 12-24V AC/DC supply voltage for broad compatibility.
- 5Simplify installation and maintenance with easy assembly and disassembly.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Bezel material | Dark grey plastic |
| Product or Component Type | Hour counter | Mounting diameter | 0.9 in (22 mm) |
| Reset | Without | [Us] rated supply voltage | 12...24 V +/- 10 % |
| Display digits | 5 | current consumption | 7...15 mA |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mounting Mode | Flush-mounted |
| Mounting Support | Panel mounting | Height | 1.2 in (30 mm) |
| Width | 1.2 in (30 mm) | Depth | 2.4 in (60 mm) |
| Device presentation | Monolithic product | Net Weight | 0.099 lb(US) (0.045 kg) |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP65 conforming to IEC 60529 | NEMA Degree of Protection | NEMA 13 |
| Standards | IEC 60947-5-1 | Product Certifications | CE<br />UL |
Specifications may be subject to change without notice
