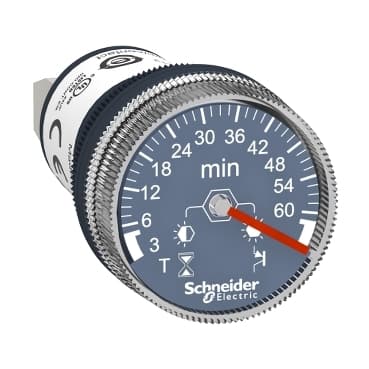

XB5DTB25
Product ID:35544
Updated: 2026/4/7
Key Features
- 1Deploy robust IP65-rated design for harsh industrial environments. 2、Set precise timing intervals from 3 to 60 minutes. 3、Power the device with compatible 24V DC input. 4、Simplify installation with easy assembly and disassembly. 5、Choose from various connection options like screw clamp or spring terminal.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Timer |
| Sale per indivisible quantity | 1 | Bezel material | Plastic |
| Fixing collar material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Panel Thickness | 0.04…0.2 in (1…6 mm) | Shape of signaling unit head | Round |
| Time delay range | 3...60 min | Time delay type | A |
| Repeat accuracy | +/- 0.5 % | Setting accuracy of time delay | +/- 10 % of full scale 77 °F (25 °C) IEC 61812-1 |
| Temperature Drift | +/- 0.05 %/°C | Voltage drift | +/- 0.2 %/V |
| Protection Type | Reverse polarity protection<br />Overvoltage protection | Pollution degree | 3 IEC 60664-1 |
| Output Type | Open collector PNP | Temporary permissible current | 10 A 0.01 s |
| Minimum switching current | 10 mA | Voltage drop in closed state | 3 V |
| Nominal rating | 200 mA at 68 °F (20 °C)( derating 1.5 mA per °C) | Residual current in open state | 0.1 mA |
| Power Consumption in W | 1 W | Reset time | 5 ms after time delay on de-energisation<br />7 ms during time delay on de-energisation |
| Local signalling | LED green, flashing timing in progress<br />LED, steady no timing in progress and output relay energised | [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 16.8…31.2 V DC | Output short-circuit protection | Yes |
| Connections - terminals | Screw terminals 1 x 4 mm² IEC 60947-1<br />Screw terminals 1 x 2.5 mm² IEC 60947-1 | IP degree of protection | IP65 front: conforming to IEC 60529<br />IP20 back: conforming to IEC 60529 |
| Ambient Air Temperature for Operation | -4…140 °F (-20…60 °C) | Ambient Air Temperature for Storage | -4…176 °F (-20…80 °C) |
| Tightening torque | 4.4 lbf.in (0.5 N.m) | Dielectric strength | 1500 V IEC 61812-1 |
| [Ui] rated insulation voltage | 50 V IEC 60947-1<br />50 V IEC 60664-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1<br />4 kV IEC 60664-1 |
| Surge withstand | 1 kV, level 2 IEC 61000-4-5 | Overvoltage category | Class 3 IEC 60536<br />Class 3 IEC 60664-1 |
| Vibration resistance | 0.15 mm 10…60 Hz)IEC 60068-2-6<br />2 gn 60…150 Hz)IEC 60068-2-6 | Shock resistance | +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27 |
| Resistance to fast transients | 2 kV level 3 IEC 61000-4-4 | Electromagnetic compatibility | Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2<br />Electromagnetic emission class B conforming to IEC 55011 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz level 3 IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4...2 GHz level 2 IEC 61000-4-3<br />0.9 V/m (1 V/m) 2...2.7 GHz level 1 IEC 61000-4-3 | Immunity to radioelectric fields | 10 V level 3 IEC 61000-4-6 |
| Disturbance radiated/conducted | Class B EN 50022 | Standards | UL 508<br />IEC 61812-1 |
| Product Certifications | UL Listed<br />CE | Device presentation | Monolithic product |
| Height | 2.4 in (62 mm) | Diameter | 1.1 in (29 mm) |
| Net Weight | 0.060 lb(US) (0.027 kg) |
Specifications may be subject to change without notice
