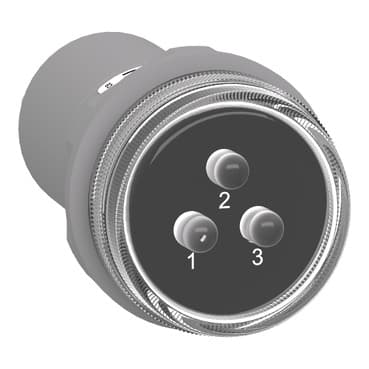

XB5EV57K4
Product ID:35549
Updated: 2026/7/19
Key Features
- 1Install and disassemble rapidly and easily.
- 2Withstand challenging environments with robust design.
- 3Connect via screw, connector, Faston, spring terminal, or PCB.
- 4Achieve excellent mechanical connection with the actuator.
- 5Comply with RoHS and REACh environmental regulations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Monolithic pilot light |
| Device short name | XB5 | Bezel material | Plastic |
| Fixing collar material | Plastic | Mounting diameter | 1.2 in (30 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| cap/operator or lens colour | Clear | Light source | Protected LED |
| Bulb base | Integral LED | Light source colour | Green<br />Red<br />Yellow |
| Phase | 3 phase | Device presentation | Monolithic product |
| Height | 2.6 in (65.5 mm) | Width | 1.4 in (36 mm) |
| Depth | 3.03 in (77 mm) | Net Weight | 0.143 lb(US) (0.065 kg) |
| Connections - terminals | Faston terminals 6.3 mm IEC 60947-1 | [Uimp] rated impulse withstand voltage | 1 kV IEC 61000-4-5 |
| compatibility code | XB5 | Supply voltage limits | 450 V AC |
| current consumption | 4...6 mA | Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -22…158 °F (-30…70 °C) | IP degree of protection | IP67 front face)<br />IP20 back face) |
| IK degree of protection | IK10 conforming to IEC 50102 | Standards | IEC 60947-5-1<br />IEC 60947-1<br />IEC 60947-5-4 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Electromagnetic compatibility | Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
