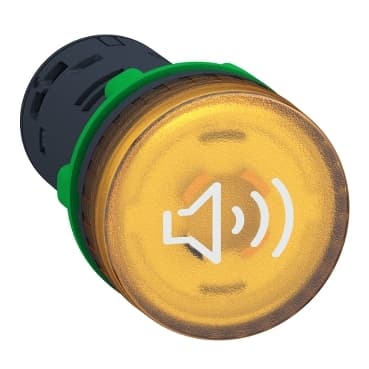

XB5KS2B8
Product ID:35875
Updated: 2026/7/19
Key Features
- 1Integrate easily into custom assemblies with multiple terminal options.
- 2Deliver clear visual and auditory signals via an illuminated buzzer.
- 3Withstand harsh environments thanks to robust, durable construction.
- 4Connect flexibly using screw clamp, connector, Faston, spring terminal, or PCB.
- 5Support sustainability with recycled materials and Schneider's green campaign.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Annunciator |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| cap/operator or lens colour | Yellow | Supply circuit type | AC/DC |
| Supply frequency | 50/60 Hz | Signalling type | Continuous or intermittent tone |
| Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % | Resistance to high pressure washer | 1305.3 psi (9000000 Pa) 176 °F (80 °C) 0.1 m |
| Height | 1.1 in (29 mm) | Width | 1.1 in (29 mm) |
| Depth | 2.2 in (55 mm) | Net Weight | 0.053 lb(US) (0.024 kg) |
| current consumption | <= 58 mA | [Us] rated supply voltage | 24 V +/- 10 % |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
| NEMA Degree of Protection | NEMA 4X<br />NEMA 13 | Standards | IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />IEC 60947-5-4<br />JIS C8201-1<br />IEC 60529<br />IEC 62262<br />IEC 50102 |
| Product Certifications | UL Listed<br />CSA<br />BV |
Specifications may be subject to change without notice
