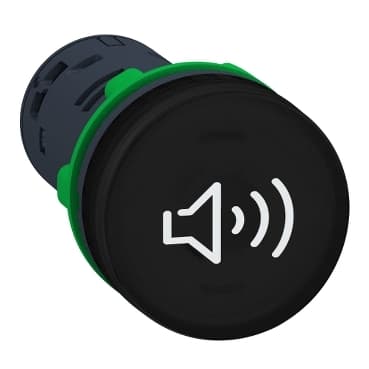

XB5KSM
Product ID:35882
Updated: 2026/7/19
Key Features
- 1Construct with durable plastic for harsh condition resistance.
- 2Deliver clear 90 dB signals for reliable alerts.
- 3Mount quickly using the simple clip-together system.
- 4Operate comfortably even when wearing gloves.
- 5Meet stringent marine certification standards for reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Annunciator |
| Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard | cap/operator or lens colour | Black |
| Supply circuit type | AC | Supply frequency | 50 Hz |
| Signalling type | Continuous or intermittent tone | Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Resistance to high pressure washer | 1305.3 psi (9000000 Pa) 176 °F (80 °C) 0.1 m | Height | 1.1 in (29 mm) |
| Width | 1.1 in (29 mm) | Depth | 2.2 in (55 mm) |
| Net Weight | 0.053 lb(US) (0.024 kg) | current consumption | <= 18 mA |
| [Us] rated supply voltage | 230...240 V +/- 10 % | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 | Electrical shock protection class | Class II IEC 60536 |
| NEMA Degree of Protection | NEMA 4X<br />NEMA 13 | Standards | IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-1<br />JIS C8201-1<br />IEC 60529<br />IEC 62262<br />IEC 50102 |
| Product Certifications | UL Listed<br />CSA<br />BV |
Specifications may be subject to change without notice
