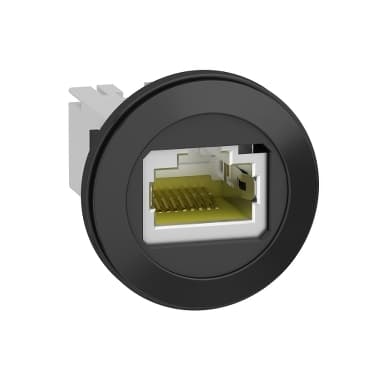

XB5PRJ45
Product ID:35883
Updated: 2026/7/19
Key Features
- 1Withstand harsh environments with IP66, IP67, and IP68 protection.
- 2Install quickly using screw clamp, connector, or spring terminal options.
- 3Meet green standards with RoHS and WEEE compliance.
- 4Enable versatile Ethernet connections via female/female RJ45 ports.
- 5Support Schneider Electric's Net Zero by 2050 commitment.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Panel mounted RJ45 port |
| Device short name | XB5P | Sale per indivisible quantity | 1 |
| Mounting diameter | 0.9 in (22 mm) | Thickness | 0.2 in (6 mm) without protection cover<br />0.06…0.2 in (1.5…5 mm) with protection cover plastic<br />0.06…0.2 in (1.5…5 mm) with protection cover rigid plastic<br />0.06…0.10 in (1.5…2.5 mm) with protection cover metal |
| Bezel material | Plastic | Fixing collar material | Plastic |
| Integrated connection type | RJ45 Ethernet 10 Gbit/s | Minimum number of matings | 750 cycles |
| IP degree of protection | IP20 front: conforming to IEC 60529<br />IP20 back: conforming to IEC 60529 | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Tightening torque | 13.3 lbf.in (1.5 N.m) |
| Vibration resistance | 5 gn 10…500 Hz) IEC 60068-2-6 | Standards | IEC 60603-7 |
| Product Certifications | UL Listed<br />CSA | Height | 1.1 in (28 mm) |
| Width | 1.1 in (28 mm) | Depth | 1.4 in (36 mm) |
| Net Weight | 0.0586 lb(US) (0.0266 kg) |
Specifications may be subject to change without notice
