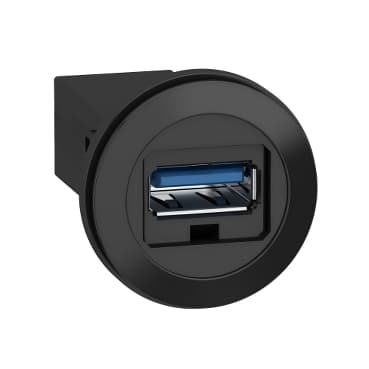

XB5PUSB3
Product ID:35884
Updated: 2026/7/19
Key Features
- 1Ensure high reliability and durability for demanding industrial environments.
- 2Integrate easily with a compact design for existing systems.
- 3Control voltage precisely with advanced power management.
- 4Meet international safety standards for complete peace of mind.
- 5Connect a wide range of devices and systems seamlessly.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Panel mounted USB port |
| Device short name | XB5P | Sale per indivisible quantity | 1 |
| Mounting diameter | 0.9 in (22 mm) | Thickness | 0.2 in (6 mm) without protection cover<br />0.06…0.2 in (1.5…5 mm) with protection cover plastic<br />0.06…0.2 in (1.5…5 mm) with protection cover rigid plastic<br />0.06…0.10 in (1.5…2.5 mm) with protection cover metal |
| Bezel material | Plastic | Fixing collar material | Plastic |
| Integrated connection type | USB 3.0 type A | Minimum number of matings | 1500 cycles |
| IP degree of protection | IP20 front: conforming to IEC 60529<br />IP20 back: conforming to IEC 60529 | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Tightening torque | 13.3 lbf.in (1.5 N.m) |
| Vibration resistance | 5.35 gn15 min per axis | Shock resistance | 30 gn 11 ms 3 chocks in each direction X, Y and Z |
| Standards | USB 3.0 | Product Certifications | CSA<br />UL Listed |
| Height | 1.1 in (28 mm) | Width | 1.1 in (28 mm) |
| Depth | 1.7 in (44 mm) | Net Weight | 0.0373 lb(US) (0.0169 kg) |
Specifications may be subject to change without notice
