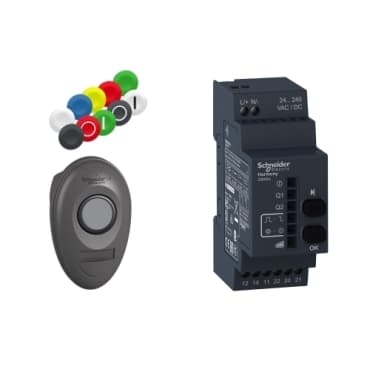

XB5RMA04
Product ID:35887
Updated: 2026/7/19
Key Features
- 1Operate wirelessly and without batteries for seamless control.
- 2Configure the receiver with 2 relay outputs for system flexibility.
- 3Withstand harsh conditions with a durable, IP65-rated construction.
- 4Connect via screw clamp, spring terminal, or PCB for versatile installation.
- 5Support sustainability with recycled packaging and a lower carbon footprint.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5R | Product or Component Type | Wireless and batteryless package |
| Device short name | XB5R | Head material | Plastic |
| frequency | 2405 MHz transmitter<br />2405 MHz receiver | emission class | 5M00G7W |
| Antenna type | Omnidirectional | Control type | Wireless and batteryless push-button handy box assembled on fixing collar |
| Type of receiver | Programmable receiver 2 relays) | [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| Kit composition | 1 transmitter<br />1 set of caps<br />1 receiver<br />1 fixing collars<br />1 0.9 in (22 mm)<br />1 push-button head 0.9 in (22 mm)<br />1 handy box | Status LED | 1 LED Green power ON<br />2 LEDs Green relay ON<br />2 LEDs Green function mode<br />1 LED green and yellow reception signal |
| Communication port protocol | Zigbee IEEE 802.15.4 | Max power consumption in W | 1 mW |
| Number of Channels | 1 | Modulation technique | O-QPSK |
| Bandwidth | 5 MHz | Antenna gain | 0 dBi |
| Customizable | No | compatibility code | XB5R |
| [Us] rated supply voltage | 24...240 V | Product Certifications | CCC<br />CSA<br />C-tick<br />GOST<br />UL |
| marking | CE | Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />UL 508 |
| Radio agreement | ANATEL<br />SRRC<br />ICASA<br />FCC<br />ARIB T66<br />RSS |
Specifications may be subject to change without notice
