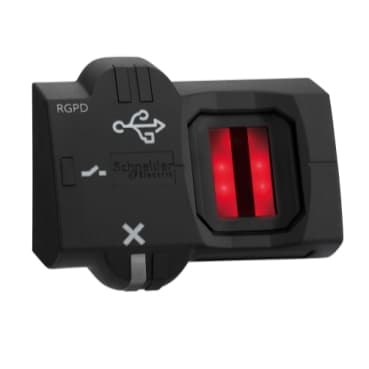

XB5S8B2L2
Product ID:35901
Updated: 2026/7/19
Key Features
- 1Ensure high security with fingerprint recognition for controlled access.
- 2Achieve sustainability compliance via the Green Premium environmental label.
- 3Simplify installation using a compact 22mm plastic enclosure.
- 4Connect versatilely via USB with a 2m cable for 24V AC/DC systems.
- 5Protect robustly with IP20 and IP65 ratings for diverse environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Biometric switch RGPD | Product Specific Application | Materials handling<br />Industrial machines |
| Device short name | XB5S | Bezel material | Plastic |
| Mounting diameter | 0.9 in (22 mm) | Output Type | PNP |
| Sale per indivisible quantity | 1 | IP degree of protection | IP20 IEC 60529 rear face)<br />IP65 IEC 60529 front face) |
| Type of operator | Stay put | Operator position information | 2 positions |
| Operator profile | fingerprint reader | Connections - terminals | 1 pre-wired cable, 3 x 0.11 mm² |
| Memory usage | 200 users with up to 2 fingerprints per user | Software Designation | XB5SSoft |
| Enclosure Material | Polyamide PA66 | Cable insulation material | PvR |
| Operating position | Vertical surface installation<br />Flat surface installation<br />Horizontal position | Function of module | Bi-stable |
| Net Weight | 0.445 lb(US) (0.202 kg) | marking | CE |
| port protocol | USB | Connector type | USB type A male 3.3 ft (1 m) |
| Local signalling | for output state indicator 1 LED (green)<br /> for error 1 LED (red) | Short-circuit protection | 250 mA external fuse gG |
| [Us] rated supply voltage | 24 V DC | Electrical connection | free wire ends 3 6.6 ft (2 m) |
| Supply voltage limits | 20…30 V DC | Protection Type | Reverse polarity<br />Short-circuit<br />Overload protection |
| Maximum switching current | 200 mA | [Ures] residual voltage | 1 V closed state |
| Current consumption | <= 70 mA no-load | Maximum delay first up | 3 s + 0.5 ms per user registered |
| Maximum delay recovery | 1.5 s | Maximum delay response | 1.5 s |
| Range of Product | Harmony XB5S | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Operation | 23…122 °F (-5…50 °C) | NEMA degree of protection | NEMA 12 |
| Standards | IEC 61000-6-4<br />IEC 61000-6-2 | Product Certifications | CSA<br />UL |
| Vibration resistance | +/- 3 mm 5…9 Hz)IEC 60068-2-6<br />1 gn 9…500 Hz)IEC 60068-2-6 | Shock resistance | 50 gn 11 ms IEC 60068-2-27 |
Specifications may be subject to change without notice
