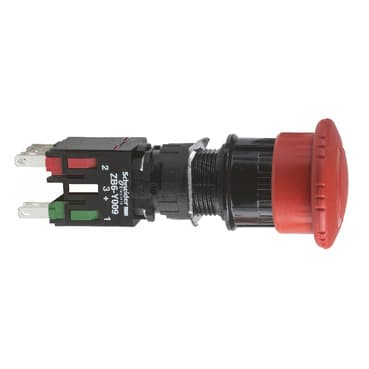

XB6AS8345B
Product ID:35968
Updated: 2026/4/6
Key Features
- 1Withstand 100,000 mechanical cycles for long-term reliability. 2、Ensure reliable operation with IP65 protection against dust and water. 3、Apply across commercial, industrial, medical, logistics, and automotive sectors. 4、Simplify setup using quick connect terminals and Faston connectors. 5、Enhance safety with Class II conformity to IEC 61140 standard.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Complete emergency stop push-button |
| Device short name | XB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | trigger action and mechanical latching |
| Reset | Turn to release | Operator profile | Red mushroom Ø 30 mm, unmarked |
| Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm | Height | 1.2 in (30 mm) |
| Width | 1.2 in (30 mm) | Depth | 3.03 in (77 mm) |
| Terminals description ISO n°1 | (13-14)NO<br />(21-22)NC | Net Weight | 0.090 lb(US) (0.041 kg) |
| Operating position | Any position | Type of Keylock | Key 200 |
| Contacts usage | Standard | Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.04 in (1 mm) NC changing electrical state)<br />0.08 in (2 mm) NO changing electrical state)<br />0.1 in (3.5 mm) total travel) | Operating force | 3.5 N NO changing electrical state<br />4.5 N NC changing electrical state |
| Mechanical durability | 100000 cycles | Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 | [Ie] rated operational current | 3 A 120 V, AC-15, B300 IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-8) 5 V, 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94 |
| Standards | IEC 60947-5-1<br />IEC 60204-1<br />UL 508<br />ISO 13850<br />IEC 60947-5-5<br />JIS C8201-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C 852<br />JIS C8201-1 | Product Certifications | UL<br />CCC<br />CSA<br />GOST |
| Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
