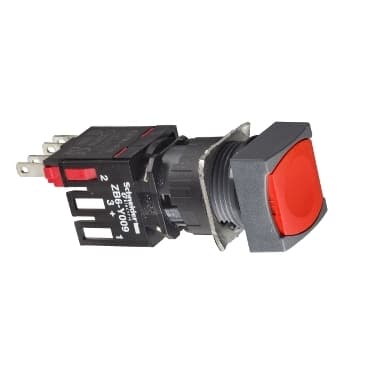

XB6CA42B
Product ID:36130
Updated: 2026/4/6
Key Features
- 1Feature a compact square flush design for restricted spaces. 2、Ensure reliable operation with a spring return mechanism. 3、Withstand harsh conditions with IP65 protection rating. 4、Provide high electrical durability via silver alloy contacts. 5、Meet IEC, UL, CSA, and CCC global standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Complete push-button |
| Device short name | XB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Square | Type of operator | spring return |
| Operator profile | Red flush, unmarked | Contacts type and composition | 1 NC |
| Contact operation | Slow-break | Connections - terminals | Faston connectors 2.8 x 0.5 mm |
| CAD overall width | 0.7 in (18 mm) | CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 2.2 in (57 mm) | Terminals description ISO n°1 | (21-22)NC |
| Net Weight | 0.042 lb(US) (0.019 kg) | Operating position | Any position |
| Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.08 in (2 mm) NC changing electrical state)<br />0.1 in (3.5 mm) total travel) |
| Operating force | 4.5 N NC changing electrical state | Mechanical durability | 2000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | EN/IEC 60947-1<br />JIS C 4520<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />JIS C 852<br />UL 508<br />CSA C22.2 No 14 |
| Product Certifications | CSA<br />CCC<br />UL<br />GOST | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
