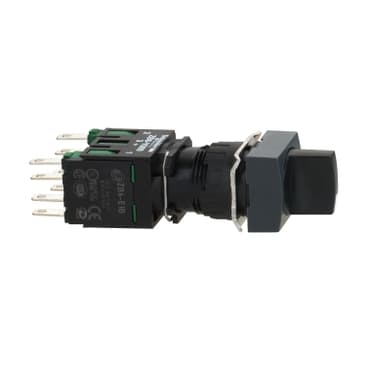

XB6CD233B
Product ID:36138
Updated: 2026/4/6
Key Features
- 1Choose a compact design for space-restricted panel layouts. 2、Install quickly with flexible Quick Connect or solder terminals. 3、Achieve IP65 protection against dust and water jets. 4、Simplify inventory with monolithic construction to reduce part numbers. 5、Mount easily in diverse industrial applications for reliable control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Complete selector switch |
| Device short name | XB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Operating position | Any position | Shape of signaling unit head | Rectangular |
| Type of operator | stay put | Operator profile | Black standard handle |
| Operator position information | 2 positions 60° | Contacts type and composition | 1 NO |
| Contact operation | Slow-break | Height | 0.7 in (18 mm) |
| Width | 0.7 in (18 mm) | Depth | 2.7 in (68 mm) |
| Terminals description ISO n°1 | (13-14)NO | Net Weight | 0.053 lb(US) (0.024 kg) |
| Positive opening | With EN/IEC 60947-5-1 appendix K | Mechanical durability | 500000 cycles |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm | Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG | [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 | [Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C | Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4 |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 |
| Standards | CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C 852<br />JIS C8201-1 | Product Certifications | UL<br />CCC<br />GOST<br />CSA |
| Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
