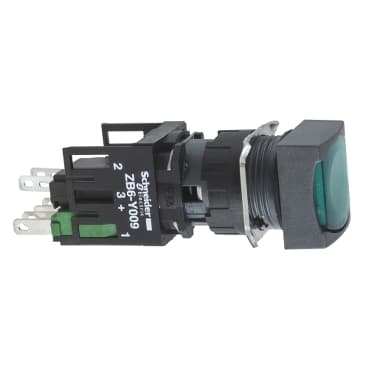

XB6CF3B5B
Product ID:36166
Updated: 2026/4/6
Key Features
- 1Ensure long-lasting performance with a durable plastic bezel and flush actuator. 2、Achieve IP65 protection against dust and water ingress. 3、Rely on a latching operator and integral LED for clear, reliable illumination. 4、Apply this versatile pushbutton across industrial, indoor, and outdoor applications. 5、Simplify installation using quick connectors and solder tabs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Complete illuminated push-button |
| Device short name | XB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Square | Type of operator | latching |
| Operator profile | Green flush, unmarked | Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break | Connections - terminals | Faston connectors 2.8 x 0.5 mm |
| Light source | LED | Bulb base | Integral LED |
| [Us] rated supply voltage | 12...24 V AC/DC | Height | 0.7 in (18 mm) |
| Width | 0.7 in (18 mm) | Depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (21-22)NC<br />(13-14)NO | Net Weight | 0.055 lb(US) (0.025 kg) |
| Operating position | Any position | Positive opening | With EN/IEC 60947-5-1 appendix K |
| Operating travel | 0.04 in (1 mm) NO changing electrical state)<br />0.08 in (2 mm) NC changing electrical state)<br />0.1 in (3.5 mm) total travel) | Operating force | 3.5 N NO changing electrical state<br />4.5 N NC changing electrical state |
| Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 | Signalling type | Steady |
| Supply voltage limits | 6…30 V AC/DC | current consumption | 15 mA |
| Surge withstand | 1 kV direct contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5 | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | EN/IEC 60947-5-5<br />JIS C 852<br />EN/IEC 60947-1<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C 4520 |
| Product Certifications | CCC<br />GOST<br />UL<br />CSA | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
