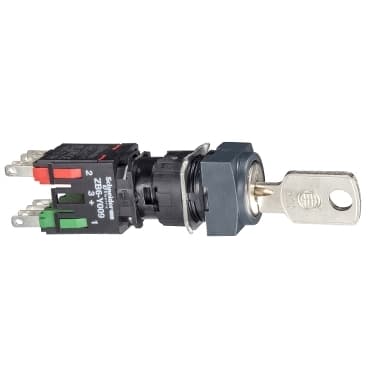

XB6CGB5B
Product ID:36182
Updated: 2026/4/6
Key Features
- 1Ensure reliable 240VAC switching with robust silver alloy construction. 2、Simplify installation using Faston quick connectors or solder tabs. 3、Meet environmental standards with full ROHS compliance. 4、Support high operational currents in demanding industrial applications. 5、Operate safely with a non-illuminated twist/key release mechanism.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Complete selector switch |
| Device short name | XB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Operating position | Any position | Shape of signaling unit head | Square |
| Type of operator | stay put | Operator profile | key switch |
| Operator position information | 2 positions 70° | Type of Keylock | Key 200 |
| Key withdrawal position | Center | Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break | CAD overall width | 0.7 in (18 mm) |
| CAD overall height | 0.7 in (18 mm) | CAD overall depth | 3.1 in (80 mm) |
| Terminals description ISO n°1 | (13-14)NO<br />(21-22)NC | Net Weight | 0.079 lb(US) (0.036 kg) |
| Positive opening | With IEC 60947-5-1 appendix K | Mechanical durability | 200000 cycles |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm | Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 | [Ie] rated operational current | 3 A 120 V, AC-15, B300 IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C | Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
| IP degree of protection | IP65 IEC 60529 | Standards | UL 508<br />IEC 60947-5-5<br />JIS C8201-5-1<br />JIS C 852<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />JIS C8201-1 |
| Product Certifications | UL<br />CSA<br />CCC<br />GOST | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
