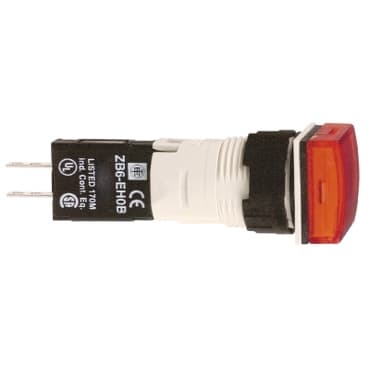

XB6CV4GB
Product ID:35991
Updated: 2026/4/6
Key Features
- 1Conform to IEC 60947-1 and -5-1 for reliability. 2、Meet 90% confidence failure rate standards for performance. 3、Built with durable plastic for harsh environments. 4、Equip with quick connectors for easy installation. 5、Comply with RoHS, UL, and CSA global safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6 | Product or Component Type | Complete pilot light |
| Device short name | XB6 | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Square | cap/operator or lens colour | Red |
| Light source | LED | Bulb base | Integral LED |
| Light block supply | Direct | [Us] rated supply voltage | 48...120 V AC/DC |
| Height | 0.7 in (18 mm) | Width | 0.7 in (18 mm) |
| Depth | 2.2 in (57 mm) | Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.033 lb(US) (0.015 kg) | Operating position | Any position |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm | [Ui] rated insulation voltage | 250 V 2)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 | Signalling type | Steady |
| Supply voltage limits | 6…30 V AC/DC | current consumption | 15 mA |
| Surge withstand | 1 kV direct contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5 | Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | EN/IEC 60947-5-5<br />UL 508<br />JIS C 852<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | UL<br />CCC<br />GOST<br />CSA | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B EN 55011 |
Specifications may be subject to change without notice
