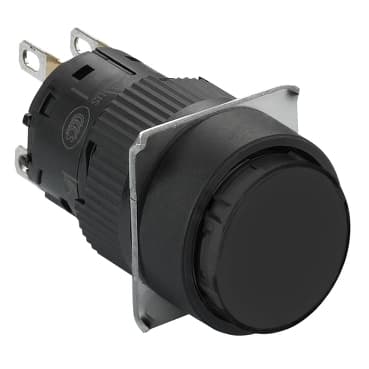

XB6EAA21P
Product ID:36069
Updated: 2026/7/19
Key Features
- 1Withstand harsh environments with IP65-rated protection.
- 2Install easily with a simple and flexible mounting process.
- 3Save panel space using the compact 16 mm diameter design.
- 4Operate versatilely with spring-return and 1 Form C contact.
- 5Meet eco-standards with RoHS compliance and no SVHC.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6E | Product or Component Type | Monolithic push-button |
| Device short name | XB6E | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Black flush | Contacts type and composition | 1 C/O |
| Contact operation | Snap action | Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket |
| Contacts material | Gold-flashed silver | Net Weight | 0.013 lb(US) (0.006 kg) |
| Overvoltage category | II IEC 60536 | Operating position | Any position |
| marking | CE | Mechanical durability | 1000000 cycles |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | Contact resistance | 50 mOhm 1/6 V |
| Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
| [Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />0.7 A 240 V, AC-13 IEC 60947-5-1<br />1 A 120 V, AC-13 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
| IP degree of protection | IP65 IEC 60529 | Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C 4520<br />UL 508<br />JIS C 852<br />IEC 60947-1 |
| Product Certifications | CCC<br />cURus | Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 |
| Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
