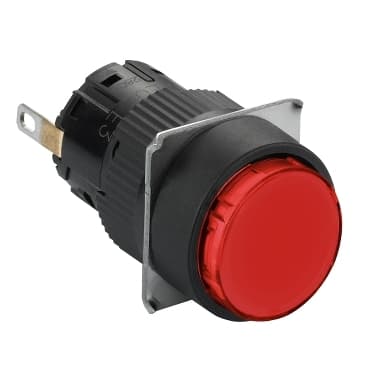

XB6EAV4JP

Product ID:36314

Updated: 2026/4/5

Key Features

1Choose a compact, monolithic pilot light design with an integrated LED for efficient and reliable illumination. 2、Ensure durability with an IP65 rating that protects against dust and water ingress. 3、Benefit from a highly visible red color indicator for clear status signaling in various environments. 4、Simplify installation using the integrated 12VDC polarized connector for secure and correct wiring. 5、Rely on a 2-year manufacturer's warranty for guaranteed long-term performance and peace of mind.

Detailed engineering parameters

Parameter	Value	Parameter	Value
Range of Product	Harmony XB6E	Product or Component Type	Monolithic pilot light
Device short name	XB6E	Bezel material	Plastic
Mounting diameter	0.6 in (16 mm)	Sale per indivisible quantity	5
Shape of signaling unit head	Round	cap/operator or lens colour	Red
Light source	Integral LED	Light block supply	Direct
[Us] rated supply voltage	12 V DC polarised	Net Weight	0.013 lb(US) (0.006 kg)
Overvoltage category	II IEC 60536	Operating position	Any position
marking	CE	Connections - terminals	Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket
Tightening torque	5.3…8.9 lbf.in (0.6…1 N.m)	[Ui] rated insulation voltage	250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage	2.5 kV IEC 60947-1	Signalling type	Steady
current consumption	10 mA	Service life	30000 h
Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)	Ambient Air Temperature for Operation	14…131 °F (-10…55 °C)
IP degree of protection	IP65 IEC 60529	Standards	JIS C8201-5-1<br />JIS C 852<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />UL 508<br />JIS C8201-1
Product Certifications	cURus<br />CCC	Vibration resistance	1 mm 10…55 Hz)IEC 60068-2-6
Shock resistance	10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
