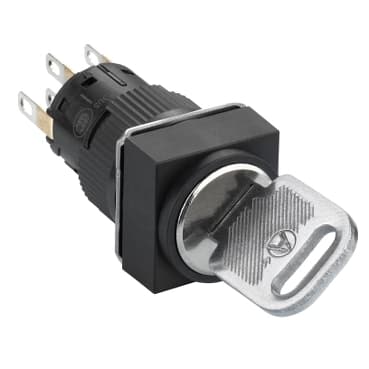

XB6ECG232P
Product ID:36266
Updated: 2026/7/18
Key Features
- 1Constructed from durable plastic for extended operational life.
- 2Utilize a simple mounting design for rapid installation.
- 3Apply in diverse industrial and commercial control applications.
- 4Meet UL and CSA safety certification standards.
- 5Benefit from a comprehensive 2-year manufacturer warranty.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6E | Product or Component Type | Monolithic selector switch |
| Device short name | XB6E | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
| Shape of signaling unit head | Square | Type of operator | stay put |
| Operator profile | key switch | Operator position information | 3 positions |
| Key number | 132 | Key withdrawal position | In any position |
| Contacts type and composition | 2 C/O | Contact operation | Snap action |
| Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket | Contacts material | Gold-flashed silver |
| Net Weight | 0.04 lb(US) (0.02 kg) | Overvoltage category | II IEC 60536 |
| Marking | CE | Mechanical durability | 250000 cycles |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | Contact resistance | 50 mOhm 1/6 V |
| Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
| [Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />0.7 A 240 V, AC-13 IEC 60947-5-1<br />1 A 120 V, AC-13 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
| IP degree of protection | IP65 IEC 60529 | Standards | IEC 60947-5-1<br />JIS C 852<br />IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-1 |
| Product Certifications | cURus<br />CCC | Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 |
| Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
