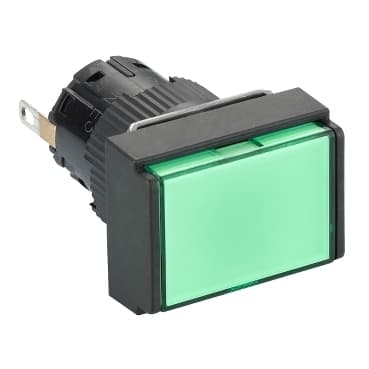

XB6EDV3JP
Product ID:36468
Updated: 2026/7/16
Key Features
- 1Construct from high-quality plastic for extended durability.
- 2Withstand harsh industrial conditions with IP65 protection.
- 3Simplify installation using quick-connect terminals.
- 4Operate efficiently at 12V DC with 20mA current.
- 5Mount seamlessly into panels for versatile applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6E | Product or Component Type | Monolithic pilot light |
| Device short name | XB6E | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
| Shape of signaling unit head | Rectangular | cap/operator or lens colour | Green |
| Light source | Integral LED | Light block supply | Direct |
| [Us] rated supply voltage | 12 V DC polarised | Net Weight | 0.013 lb(US) (0.006 kg) |
| Overvoltage category | II IEC 60536 | Operating position | Any position |
| marking | CE | Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 | Signalling type | Steady |
| current consumption | 10 mA | Service life | 30000 h |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
| IP degree of protection | IP65 IEC 60529 | Standards | UL 508<br />IEC 60947-5-1<br />JIS C 852<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-1<br />JIS C8201-1 |
| Product Certifications | CCC<br />cURus | Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 |
| Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
