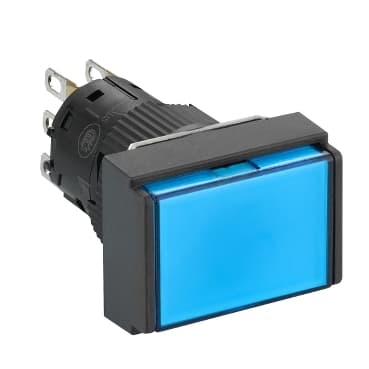

XB6EDW6J1P
Product ID:36495
Updated: 2026/4/5
Key Features
- 1Withstand extreme temperatures from -25°C to 55°C. 2、Install easily using insulated faston connector sockets. 3、Meet IP65 rating for stringent environmental protection. 4、Suit small machines, control panels, and medical instrumentation. 5、Ensure compliance with RoHS environmental regulations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6E | Product or Component Type | Illuminated monolithic push-button |
| Device short name | XB6E | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
| Shape of signaling unit head | Rectangular | Type of operator | spring return |
| Operator profile | Blue flush | Contacts type and composition | 1 C/O |
| Contact operation | Snap action | Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket |
| Contacts material | Gold-flashed silver | Light source | Integral LED |
| [Us] rated supply voltage | 12 V DC polarised | Net Weight | 0.013 lb(US) (0.006 kg) |
| Operating position | Any position | marking | CE |
| Mechanical durability | 1000000 cycles | Contact resistance | 50 mOhm 1/6 V |
| Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
| [Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
| Signalling type | Steady | current consumption | 10 mA |
| Service life | 30000 h | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) | IP degree of protection | IP65 IEC 60529 |
| Standards | IEC 60947-1<br />CSA C22.2 No 14<br />JIS C 4520<br />IEC 60947-5-1<br />JIS C 852<br />UL 508 | Product Certifications | cURus<br />CCC |
| Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 | Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
