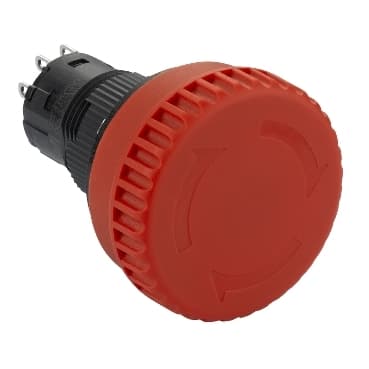

XB6ETI523P
Product ID:36502
Updated: 2026/4/5
Key Features
- 1Utilize a compact design for restrictive installation areas. 2、Simplify installation with flexible mounting options. 3、Ensure IP65 protection against harsh industrial environments. 4、Reduce part numbers and simplify stock with a monolithic design. 5、Configure reliable 2NC contacts rated 0.7 A at 240 VAC.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB6E | Product or Component Type | Complete illuminated mushroom head push-button |
| Device short name | XB6E | Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) | Shape of signaling unit head | Round |
| Type of operator | trigger action | Reset | Pull to release<br />Turn to release |
| Operator profile | Red mushroom Ø 32 mm | Contacts type and composition | 2 NC |
| Connections - terminals | Solder terminal <= 0.75 mm² AWG 19 | Net Weight | 0.0443 lb(US) (0.0201 kg) |
| marking | CE | Mechanical durability | 100000 cycles |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | Short-circuit protection | 6 A fuse gG IEC 60269 |
| [Ith] conventional free air thermal current | 5 A | [Ui] rated insulation voltage | 250 V 3) |
| Insulation resistance | < 100 MOhm | [Uimp] rated impulse withstand voltage | 2.5 kV |
| [Ie] rated operational current | 1.5 A 120 V, AC-12, C300 IEC 60947-5-1<br />0.3 A 120 V, AC-15, C300 IEC 60947-5-1<br />1 A 240 V, AC-12, C300 IEC 60947-5-1<br />0.3 A 240 V, AC-15, C300 IEC 60947-5-1<br />1 A 24 V, DC-12, R300 IEC 60947-5-1<br />0.7 A 24 V, DC-13, R300 IEC 60947-5-1<br />0.2 A 125 V, DC-12, R300 IEC 60947-5-1<br />0.15 A 125 V, DC-13, R300 IEC 60947-5-1 | Electrical durability | 1000000 cycles<br />50000 cycles, DC-13 |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
| IP degree of protection | IP65 IEC 60529 | Standards | JIS C8201-5-1<br />IEC 60947-5-1<br />GB 14048.5<br />IEC 60947-5-5<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1 |
| Product Certifications | TÜV<br />UR<br />CCC | Vibration resistance | +/- 0.7 mm 10…500 Hz) |
| Shock resistance | 500 m/s²mechanical durability |
Specifications may be subject to change without notice
