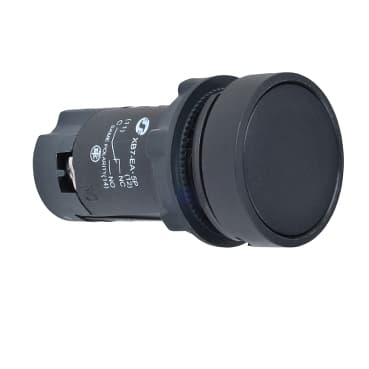

XB7EA21P
Product ID:36384
Updated: 2026/4/5
Key Features
- 1Achieve 1 million cycles for reliable, long-term operation. 2、Install easily in 22 mm mounting holes to save panel space. 3、Protect against dust and water with IP54 front and IP20 rear ratings. 4、Secure the switch using the fixing nut with 2.2 N.m torque. 5、Use common JIS, Philips, Pozidriv, or flat screwdrivers for maintenance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB7 | Product or Component Type | Push-button |
| Device short name | XB7 | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 10 | IP degree of protection | IP20 IEC 60529 rear face)<br />IP54 IEC 60529 front face) |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Black flush, unmarked | Contacts type and composition | 1 NO |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1<br />Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end EN/IEC 60947-1 | Device presentation | Monolithic product |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 2.05 in (52 mm) | Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.04 lb(US) (0.02 kg) | Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-1 |
| Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)<br />>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) | Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) |
| Contact operation | Slow-break | Positive opening | Without |
| Mechanical durability | 1000000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Short-circuit protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
| [Ie] rated operational current | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1<br />0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1<br />0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical reliability | Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4 | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II IEC 60536 | NEMA degree of protection | NEMA 12 |
| Standards | EN/IEC 60947-5-1<br />JIS C8201-5-1<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
