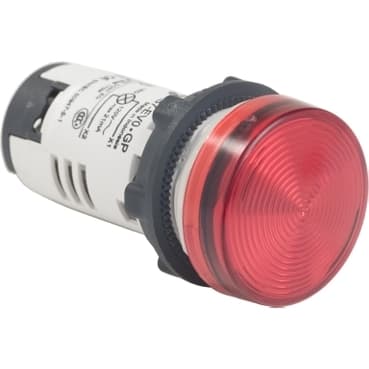

XB7EV04GP
Product ID:36401
Updated: 2026/4/5
Key Features
- 1Maximize power density in compact panel designs. 2、Utilize a wide input voltage range for flexible global deployment. 3、Achieve high efficiency up to 95% to reduce operational energy loss. 4、Ensure long-term reliability with a robust plastic body construction. 5、Meet international safety standards for compliance and peace of mind.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB7 | Product or Component Type | Pilot light |
| Device short name | XB7 | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 10 | Shape of signaling unit head | Round |
| cap/operator or lens colour | Red | Light source | LED |
| Bulb base | Integral LED | [Us] Rated Supply Voltage | 120 V AC 50/60 Hz |
| Device presentation | Monolithic product | Height | 1.1 in (29 mm) |
| Width | 1.1 in (29 mm) | Depth | 2.1 in (54 mm) |
| Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.04 lb(US) (0.02 kg) |
| Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-5-1 | Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)<br />>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) |
| Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Signalling type | Steady | Supply voltage limits | 100…132 V AC |
| current consumption | 18...21 mA | Service life | 70000 h at rated voltage and 25 °C |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP20 IEC 60529 rear face)<br />IP65 IEC 60529 front face) | NEMA degree of protection | NEMA 4 UL 50 E<br />NEMA 12 UL 50 E |
| Standards | IEC 60947-5-1<br />UL 508<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Electromagnetic compatibility | Disturbing field emission class B conforming to IEC 55011 |
Specifications may be subject to change without notice
