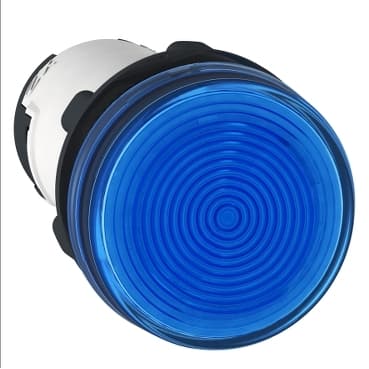

XB7EV06GP
Product ID:36413
Updated: 2026/4/5
Key Features
- 1Ensure reliable operation with an IP65-rated plastic housing. 2、Achieve consistent illumination using the 120V AC integral LED lamp. 3、Simplify installation with secure screw clamp terminals. 4、Deploy across industries like machine manufacturing and chemical plants. 5、Support sustainability with environmentally friendly recycled packaging.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB7 | Product or Component Type | Pilot light |
| Device short name | XB7 | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 10 | Shape of signaling unit head | Round |
| cap/operator or lens colour | Blue | Light source | LED |
| Bulb base | Integral LED | [Us] Rated Supply Voltage | 120 V AC 50/60 Hz |
| Device presentation | Monolithic product | Height | 1.1 in (29 mm) |
| Width | 1.1 in (29 mm) | Depth | 2.1 in (54 mm) |
| Terminals description ISO n°1 | (X1-X2)PL | Net Weight | 0.04 lb(US) (0.02 kg) |
| Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-5-1 | Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)<br />>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) |
| Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Signalling type | Steady | Supply voltage limits | 100…132 V AC |
| current consumption | 18...21 mA | Service life | 70000 h at rated voltage and 25 °C |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP20 IEC 60529 rear face)<br />IP65 IEC 60529 front face) | NEMA degree of protection | NEMA 4 UL 50 E<br />NEMA 12 UL 50 E |
| Standards | JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Electromagnetic compatibility | Disturbing field emission class B conforming to IEC 55011 |
Specifications may be subject to change without notice
