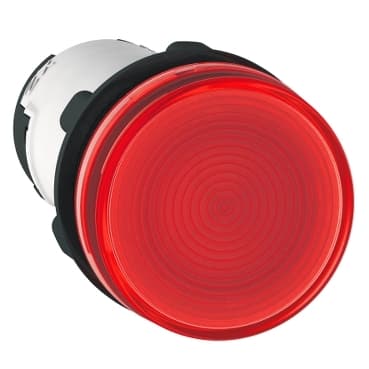

XB7EV64P
Product ID:36670
Updated: 2026/4/5
Key Features
- 1Ensure durability with high-quality red plastic construction. 2、Simplify installation using screw clamp terminals. 3、Enhance visibility with an illuminated flush profile lens. 4、Achieve IP65 rating for dust and water resistance. 5、Meet safety standards with UL 508 certification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB7 | Product or Component Type | Pilot light |
| Device short name | XB7 | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 10 | Operator additional information | With plain lens |
| Light source | Incandescent (bulb not included) | Device presentation | Monolithic product |
| Height | 1.1 in (29 mm) | Width | 1.1 in (29 mm) |
| Depth | 2.1 in (54 mm) | Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.040 lb(US) (0.018 kg) | Overvoltage category | Class II IEC 60536 |
| Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-5-1 | Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)<br />>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) |
| Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) | Shape of signaling unit head | Round |
| cap/operator or lens colour | Red | Connections - terminals | Faston connectors 6.35 x 0.8 mm IEC 60947-1<br />Forked type tag connectors 6.5 mm IEC 60947-1<br />Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Signalling type | Steady | Bulb base | BA 9s |
| Light block supply | Direct | [Us] rated supply voltage | <= 250 V |
| compatibility code | XB7 | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
| IP degree of protection | IP20 IEC 60529 rear face)<br />IP54 IEC 60529 front face) | NEMA degree of protection | NEMA 12 |
| Standards | IEC 60947-5-1<br />IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Electromagnetic compatibility | Disturbing field emission class B conforming to IEC 55011 |
Specifications may be subject to change without notice
