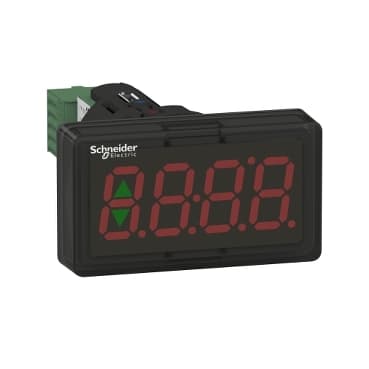

XBH1AA0R4
Product ID:36566
Updated: 2026/4/5
Key Features
- 1Display process values with a high-accuracy 4-digit red LED. 2、Withstand harsh conditions using robust plastic construction. 3、Connect easily via screw clamp, connector, or spring terminal. 4、Operate reliably across a wide -4 to 140°F temperature range. 5、Integrate seamlessly with standard 4-20mA control signals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB5 | Product or Component Type | Display module |
| Display digits | 4 - 0.6 in (14 mm) | Display Type | 7 segments LED |
| Display colour | Red | display projection | -999...9999 |
| Accuracy | +/- 0.15 % of the measuring range + 1 digit | Solid state output type | 2 x power MOSFET |
| Discrete output voltage | 30 V DC | Discrete output current | 0.5 A |
| Brightness | Fixed | Analogue input range | 4...20 mA DC |
| Maximum voltage drop | 6 V | Temperature Drift | 50 ppm/°C |
| Mounting diameter | 0.9 in (22.5 mm) | Connections - terminals | Spring terminals, 1 x 0.2...1 mm² AWG 24...AWG 17) |
| Housing material | Plastic | Flame Retardance | UL94-V1 |
| Tightening torque | 1.3 N.m +/- 0.2 N.m<br />11.5 lb.in +/- 1.8 lb.in | Width | 2.03 in (51.5 mm) |
| Height | 1.2 in (29.5 mm) | Depth | 3.08 in (78.2 mm) |
| Net Weight | 0.071 lb(US) (0.032 kg) | Ambient Air Temperature for Operation | -4…140 °F (-20…60 °C) |
| Ambient Air Temperature for Storage | -4…185 °F (-20…85 °C) | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| IP degree of protection | IP65 IEC 60529 front panel) | Standards | IEC 61326-1 |
Specifications may be subject to change without notice
