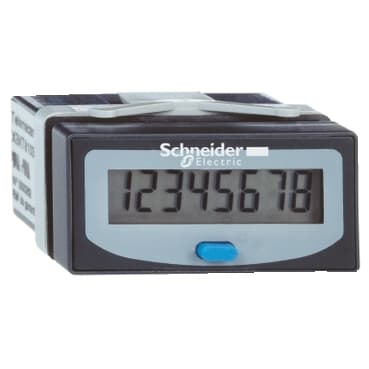

XBKH81000033E
Product ID:36567
Updated: 2026/4/3
Key Features
- 1Ensure precise timekeeping with an LCD 8-digit display. 2、Operate reliably using an internal Li battery. 3、Meet environmental regulations with a mercury-free design. 4、Achieve sustainability via the Green Premium commitment. 5、Count oven duration and other timing applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Zelio Count | Product or Component Type | Hour counter |
| Display Type | LCD | Size | 24 x 48 mm |
| Display digits | 8 | Reset | Manual<br />Transistor |
| Battery Type | Lithium | Technology Type | Electronic |
| Backup Time | 7 years | Counting mode | Adding 1/100 of an hour |
| Time range | 0...999 999.99 h | input function | Enable |
| Input type | Transistor NPN <= 0.7 V DC<br />Transistor PNP >= 5 V DC<br />Volt-free contact | Input voltage | <= +/- 40 V DC |
| Mounting Mode | Flush-mounted | Mounting Support | Panel mounting |
| Fixing Mode | By self-locking clamp | Connections - terminals | Screw terminal block |
| Supply | Battery | Net Weight | 0.11 lb(US) (0.05 kg) |
| Character size | 0.3 in (7 mm) | CAD overall width | 1.9 in (48 mm) |
| CAD overall height | 0.9 in (24 mm) | CAD overall depth | 1.6 in (40 mm) |
| Standards | EN/IEC 50081-2<br />EN 61010<br />EN/IEC 50082-2 | IP degree of protection | IP54EN/IEC 60529 |
| Ambient Air Temperature for Operation | 14…122 °F (-10…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Vibration resistance | 1 gn 10…150 Hz)EN/IEC 60068-2-6 | Shock resistance | 10 gn 18 ms EN/IEC 60068-2-27 |
| Electrical shock protection class | Class II EN/IEC 60536 |
Specifications may be subject to change without notice
