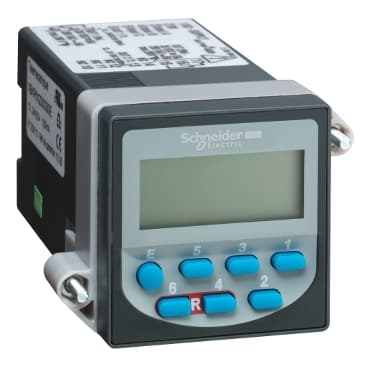

XBKP61230G30E
Product ID:36568
Updated: 2026/4/3
Key Features
- 1Count bi-directionally up to 2500 Hz for versatile applications. 2、Achieve unidirectional counting at frequencies up to 5000 Hz. 3、View clear data on the 6-digit LCD display in any environment. 4、Choose between automatic or manual reset for operational flexibility. 5、Install easily with flush or panel mount options to save panel space.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Zelio Count | Product or Component Type | Multifunctional counter |
| Additional information | Batch counter<br />Preselection counter<br />Tachometer<br />Chronometer | Display Type | LCD |
| Size | 48 x 48 mm | Display digits | 6 |
| Counting frequency | bi-directional counting 2500 Hz<br /> uni-directional counting 5000 Hz | Reset | Manual<br />Automatic reset<br />Electrical reset |
| Counting capacity | -99999...999999 | [Us] Rated Supply Voltage | 24 V DC Us +/- 10 % |
| Current consumption | 150 mA 24 V DC | Output type | Relay changeover 5 ms 5...250 V AC, 0.01…1 A<br />Relay changeover 5 ms 5...30 V DC, 0.01…1 A<br />Transistor PNP 12...24 V DC, 0.01 A |
| Preset number | 2 | Counting mode | Counting direction inputs 5 kOhm)<br />Differential inputs 5 kOhm)<br />Single counter input 5 kOhm)<br />Single counter with phase discriminator 5 kOhm)<br />Summing inputs 5 kOhm) |
| Time range | 0...99 999.9 mn<br />0...99 999.9 s<br />0...99 h 59 mn 59 s<br />0...99 999.9 h | Input type | Contact |
| Minimum pulse duration | 0.0001 s 5000 Hz<br />0.017 s 30 Hz | Mounting Mode | Flush-mounted |
| Mounting Support | Panel mounting | Fixing Mode | By self-locking clamp with setscrews |
| Connections - terminals | Screw terminal block | Discrete input type | NPN or PNP |
| Height | 1.9 in (48 mm) | Number of outputs | 3 |
| Net Weight | 0.33 lb(US) (0.15 kg) | Width | 1.9 in (48 mm) |
| CAD overall width | 1.9 in (48 mm) | CAD overall height | 1.9 in (48 mm) |
| CAD overall depth | 4.02 in (102 mm) | Standards | EN 61010<br />EN 50081-2<br />EN 50082-2 |
| Product Certifications | cURus | IP degree of protection | IP65IEC 60529 |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient Air Temperature for Storage | -4…158 °F (-20…70 °C) |
| Vibration resistance | 1 gn 10…150 Hz)IEC 60068-2-6 | Shock resistance | 10 gn 18 ms IEC 60068-2-27 |
| Electrical shock protection class | Class II IEC 60536 |
Specifications may be subject to change without notice
