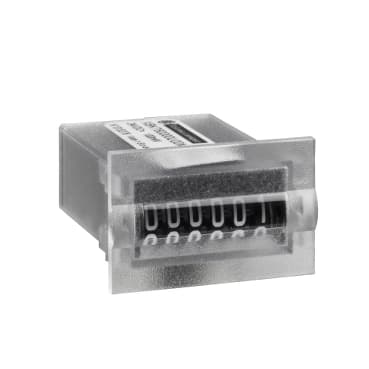

XBKT60000U00M
Product ID:36570
Updated: 2026/7/14
Key Features
- 1Display clear counts on a mechanical 6-digit screen.
- 2Operate reliably with 24V DC supply and +/-10% tolerance.
- 3Ensure continuous counting via permanent backup time.
- 4Integrate easily into panels with a compact 20 x 30 mm size.
- 5Protect against dust and water with IP65 rating for harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Zelio Count | Product or Component Type | Totalising counter |
| Display Type | Mechanical | Size | 20 x 30 mm |
| Display digits | 6 - 0.2 in (4 mm) | maximum counting frequency | 25 Hz |
| Reset | Without | Counting capacity | 0...999 999 |
| Technology Type | Electromechanical | [Us] rated supply voltage | 24 V DC Us +/- 10 % |
| Power consumption in VA | 0.155 VA | Backup Time | Permanent |
| Counting mode | Adding | input function | Counting |
| Input type | Contact | Mechanical durability | 10000000 cycles |
| Mounting Mode | Flush-mounted | Mounting Support | Panel mounting |
| Connections - terminals | AMP lugs connection box) | Height | 0.8 in (20 mm) |
| Net Weight | 0.07 lb(US) (0.03 kg) | Width | 1.2 in (30 mm) |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 0.8 in (20 mm) |
| CAD overall depth | 1.7 in (42 mm) | Standards | EN/IEC 50081-2<br />EN/IEC 50082-2 |
| IP degree of protection | IP65EN/IEC 60529 | Ambient Air Temperature for Operation | 14…158 °F (-10…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Vibration resistance | 5 gn 10…150 Hz)EN/IEC 60068-2-6 |
| Shock resistance | 30 gn 6 ms EN/IEC 60068-2-27 | Electrical shock protection class | Class II IEC 60536 |
Specifications may be subject to change without notice
