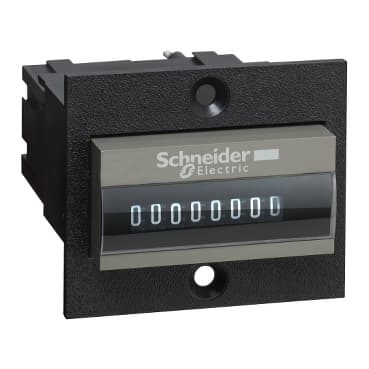

XBKT80000U00M
Product ID:36571
Updated: 2026/7/14
Key Features
- 1Feature an 8-digit mechanical display for precise, at-a-glance totalisation.
- 2Operate reliably on 24 V DC power in diverse industrial environments.
- 3Integrate easily into panels with a compact 50 x 60 mm footprint.
- 4Capture data efficiently with a high 25 Hz counting frequency.
- 5Ensure long-lasting performance with durable electromechanical construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Zelio Count | Product or Component Type | Totalising counter |
| Display Type | Mechanical | Size | 50 x 60 mm |
| Display digits | 8 - 0.2 in (4 mm) | maximum counting frequency | 25 Hz |
| Reset | Without | Counting capacity | 0...9 999 999 |
| Technology Type | Electromechanical | [Us] rated supply voltage | 24 V DC Us +/- 10 % |
| Power consumption in W | 2.5 W | Backup Time | Permanent |
| Counting mode | Adding | input function | Counting |
| Input type | Contact | Mechanical durability | 200000000 cycles |
| Mounting Mode | Flush-mounted | Mounting Support | Panel mounting |
| Connections - terminals | AMP lugs connection box) | Height | 2.0 in (50 mm) |
| Net Weight | 0.33 lb(US) (0.15 kg) | Width | 2.4 in (60 mm) |
| CAD overall width | 2.4 in (60 mm) | CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 3.7 in (94 mm) | Standards | EN/IEC 50081-2<br />EN/IEC 50082-2 |
| Product Certifications | cURus | IP degree of protection | IP40EN/IEC 60529 |
| Ambient Air Temperature for Operation | 14…122 °F (-10…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Vibration resistance | 5 gn 10…150 Hz)EN/IEC 60068-2-6 | Shock resistance | 30 gn 6 ms EN/IEC 60068-2-27 |
| Electrical shock protection class | Class II IEC 60536 |
Specifications may be subject to change without notice
