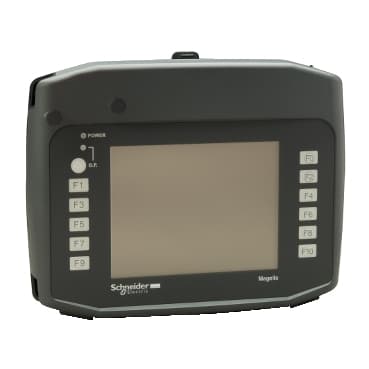

XBTGH2460B
Product ID:36588
Updated: 2026/7/14
Key Features
- 1View high-resolution 640x480 VGA display for clear visibility.
- 2Utilize a backlit color TFT LCD with 65536 colors.
- 3Operate a precise touch-sensitive zone with 1024x1024 resolution.
- 4Support multiple languages including Japanese and Chinese.
- 5Deploy the IP65-rated panel in harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XBTGH | Product or Component Type | Advanced hand-held panel |
| Display Type | Backlit colour TFT LCD | Display colour | 65536 colours |
| Display Resolution | 640 x 480 pixels VGA | Display size | 5.7 inch |
| Control Type | 1 enable switch<br />1 key switch | Contacts type and composition | 1 NC + 1 NO key switch<br />2 NO enable switch<br />2 NC + 1 NO |
| Software Type | Configuration software | Software Designation | Vijeo Designer |
| Operating System | Harmony | Processor name | CPU RISC |
| Processor frequency | 266 MHz | Memory description | 512 KB SRAM back up of data lithium battery<br />32 MB flash EPROM application memory |
| Integrated connection type | 1 USB type A master port (V1.1)<br /> 24-pin Faston connector COM1 serial link junction box<br /> 24-pin Faston connector Ethernet TCP/IP junction box<br /> 24-pin Faston connector power supply junction box | Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| Touch sensitive zone | 1024 x 1024 | Touch panel | Analogue |
| Backlight lifespan | 50000 hours | Brightness | 16 levels via touch panel |
| Character font | Japanese (ANK, Kanji)<br />ASCII (European characters)<br />Korean<br />Chinese (simplified Chinese)<br />Taiwanese (traditional Chinese) | [Us] rated supply voltage | 24 V DC |
| Supply | External source | Supply voltage limits | 19.2…28.8 V |
| [Ue] rated operational voltage | 24 V DC key switch<br />30 V DC enable switch | Maximum [Ie] rated operational current | 0.3 A key switch<br />0.7 A control handle |
| Inrush current | 60 A | Power consumption in W | 16.7 W |
| Number of Operation keys | 1 with LED | Number of static function keys | 11 with labels |
| Local signalling | for normal operation or backlighting faulty 1 LED (green or orange) | Downloadable protocols | Schneider Electric Modicon Modbus<br />Schneider Electric Modicon Modbus TCP/IP<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Schneider Electric Modicon Uni-TE |
| Realtime clock | Built-in | Data storage equipment | 1 Compact Flash card >= 1 GB |
| Enclosure Material | PPT | marking | CE |
| Width | 8.8 in (224 mm) | Height | 6.9 in (174 mm) |
| Depth | 3.4 in (87.1 mm) | Net Weight | 2.2 lb(US) (1 kg) |
| Immunity to microbreaks | 5 ms | Standards | IEC 61000-6-2<br />EN 61131-2<br />FCC Class A<br />UL 508 |
| Product Certifications | C-tick<br />cULus | Ambient Air Temperature for Operation | 32…104 °F (0…40 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 0…90 % without condensation |
| Operating altitude | < 6561.68 ft (2000 m) | IP degree of protection | IP65 IEC 60529 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Vibration resistance | 1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 |
Specifications may be subject to change without notice
