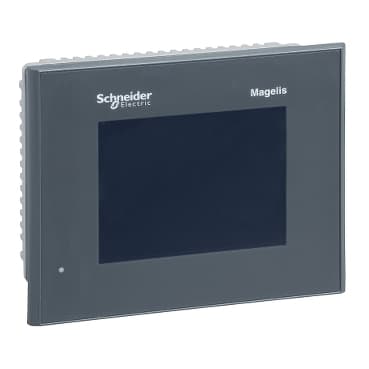

XBTGT1135
Product ID:36595
Updated: 2026/7/14
Key Features
- 1Display clear 320x240 QVGA visuals on a 3.8" touchscreen.
- 2Integrate easily with 24V industrial control systems.
- 3Rely on a robust 2-year warranty for dependable operation.
- 4Optimize material handling, packaging, and textile machine interfaces.
- 5Reduce panel space with a compact and efficient design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XBTGT | Product or Component Type | Advanced touchscreen panel |
| Display Type | Backlit monochrome STN LCD | Display colour | 8 levels of grey<br />Amber or red |
| Display Resolution | 320 x 240 pixels QVGA | Display size | 3.8 inch |
| Software Type | Configuration software | Software Designation | Vijeo Designer |
| Operating System | Harmony | Processor name | CPU RISC |
| Processor frequency | 200 MHz | Memory description | 512 KB SRAM back up of data lithium battery<br />32 MB flash EPROM application memory |
| Integrated connection type | removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP<br /> RJ45 COM1 serial link RS232C/RS485 <= 115.2 kbits/s<br /> USB type A master port (V1.1) Modicon M340 terminal port communication | Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| cut-out dimensions | 118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm | Touch panel | Analogue |
| Backlight lifespan | 10000 hours red<br />50000 hours amber | Brightness | 16 levels |
| Contrast | 8 levels via touch panel | Character font | Chinese (simplified Chinese)<br />Korean<br />Taiwanese (traditional Chinese)<br />Japanese (ANK, Kanji)<br />ASCII |
| [Us] rated supply voltage | 24 V DC | Supply | External source |
| Supply voltage limits | 19.2…28.8 V | Inrush current | 60 A |
| Power consumption in W | 13 W | Local signalling | for normal operation 1 LED (green) |
| Number of pages | Limited by internal memory capacity | Downloadable protocols | Telemecanique Modicon Modbus TCP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in | Port Ethernet | 100BASE-TX |
| Product mounting | Flush mounting | Fixing Mode | By 4 screw clamps<br />By 2 spring clips |
| Front material | PPT | Enclosure Material | PPT |
| marking | CE | Width | 5.1 in (130 mm) |
| Height | 4.09 in (104 mm) | Depth | 1.6 in (40 mm) |
| Net Weight | 0.9 lb(US) (0.4 kg) | Immunity to microbreaks | 2 ms |
| Standards | UL 508<br />IEC 61000-6-2<br />UL 1604<br />FCC Class A<br />CSA C22.2 No 14<br />EN 61131-2 | Product Certifications | UL Class 1 Division 2 T4A<br />CSA Class 1 Division 2 T5<br />ATEX zone 2/22<br />CSA Class 1 Division 2 T4A<br />UL Class 1 Division 2 T5<br />cULus<br />C-tick |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 0…90 % without condensation | Operating altitude | < 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Vibration resistance | 1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 |
Specifications may be subject to change without notice
