XBTGT6330

Product ID:36611
Updated: 2026/4/3

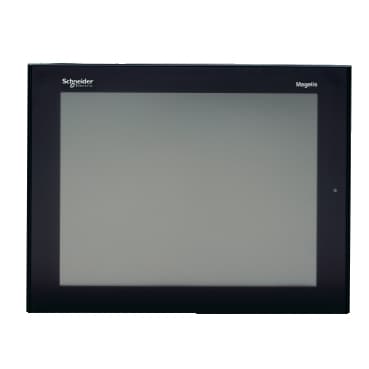

schneider XBTGT6330

Key Features

  • 1Deliver clear visibility with a high-resolution 12.1-inch SVGA display. 2、Ensure reliable performance using a robust 266 MHz RISC CPU. 3、Connect seamlessly via advanced protocols like COM2 and Siemens MPI. 4、Protect data integrity with 512 kB SRAM and battery backup. 5、Operate safely in harsh, hazardous locations with IP65 rating.
Product Details
XBTGT6330
schneider

Technical Specifications

Detailed engineering parameters

ParameterValueParameterValue
Range of Product
Harmony XBTGT
Product or Component Type
Advanced touchscreen panel
Display Type
Backlit colour TFT LCD
Display colour
65536 colours
Display Resolution
800 x 600 pixels SVGA
Display size
12.1 inch
Software Type
Configuration software
Software Designation
Vijeo Designer
Operating System
Harmony
Processor name
CPU RISC
Processor frequency
266 MHz
Memory description
512 KB SRAM back up of data lithium battery<br />32 MB flash EPROM application memory
Integrated connection type
RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)<br /> male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s<br /> removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP<br />3 removable screw terminal block digital output<br /> removable screw terminal block audio output<br /> removable screw terminal block digital input<br />2 USB type A master port (V1.1)
Resistance to electrostatic discharge
6 kV IEC 61000-4-2 level 3
cut-out dimensions
301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
Touch sensitive zone
1024 x 1024
Touch panel
Analogue
Backlight lifespan
50000 hours
Brightness
8 levels via touch panel
Character font
Chinese (simplified Chinese)<br />Korean<br />ASCII (European characters)<br />Japanese (ANK, Kanji)<br />Taiwanese (traditional Chinese)
[Us] rated supply voltage
24 V DC
Supply
External source
Supply voltage limits
19.2…28.8 V
Inrush current
30 A
Power consumption in W
30 W
Local signalling
for normal operation or backlighting faulty 1 LED (green or orange)
Number of pages
Limited by internal memory capacity
Downloadable protocols
Telemecanique Modicon FIPWAY<br />Telemecanique Modicon Modbus Plus<br />Telemecanique Modicon Modbus TCP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE
Realtime clock
Built-in
Data storage equipment
1 Compact Flash card >= 1 GB
Use of slot
For 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet
10BASE-T/100BASE-TX
Product mounting
Flush mounting
Fixing Mode
By 4 spring clips<br />By 4 screw clamps
Front material
Aluminium alloy
Enclosure Material
PPT
marking
CE
Width
12.3 in (313 mm)
Height
9.4 in (239 mm)
Depth
2.2 in (56 mm)
Net Weight
6.6 lb(US) (3 kg)
Immunity to microbreaks
10 ms
Standards
IEC 61000-6-2<br />CSA C22.2 No 14<br />FCC Class A<br />UL 1604<br />UL 508<br />EN 61131-2
Product Certifications
cULus<br />ATEX zone 2/22<br />CSA Class 1 Division 2 T4A<br />UL Class 1 Division 2 T5<br />C-tick<br />UL Class 1 Division 2 T4A<br />CSA Class 1 Division 2 T5
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % without condensation
Operating altitude
< 6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection
NEMA 4X front panel (indoor use)
Shock resistance
15 gn 11 ms IEC 60068-2-27
Vibration resistance
1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to fast transients
2 kV IEC 61000-4-4 level 3
