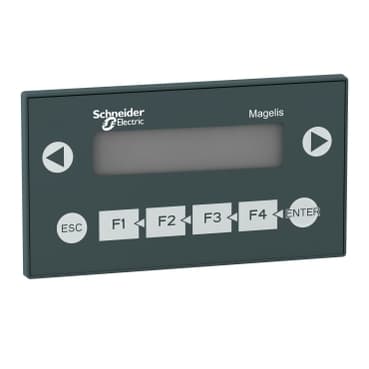

XBTN200
Product ID:36615
Updated: 2026/7/14
Key Features
- 1Maximize space with a compact 132x74x43 mm design.
- 2Enhance visibility using an extra-bright alphanumeric backlit LCD.
- 3Streamline operations with four customizable function keys.
- 4Integrate easily via Modbus/Unitelway and RJ45 serial link.
- 5Ensure durability with IP20/IP65 and NEMA 4X protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Magelis XBTN | Product or Component Type | Small panel with keypad |
| Software Type | Configuration software | Software Designation | Vijeo Designer Lite |
| Operating System | Magelis | Display Type | Extra-bright alphanumeric backlit LCD |
| Display colour | Green | Character font | ASCII<br />Katakana |
| [Us] rated supply voltage | 5 V DC | Supply | From PLC (terminal port) |
| Number of key | 8 | Number of fixed keys | 4 |
| Number of customisable keys | 4 | Number of pages | 128 application pages |
| Memory type | Flash | Memory capacity | 512 KB |
| Integrated connection type | Serial link female RJ45, asynchronous RS232C/RS485)point-to-point | Realtime clock | Access to the PLC real-time clock |
| Product mounting | Flush mounting | Fixing Mode | By 2 spring clips |
| Display material | Polyester | Front material | PPT |
| Keypad material | Polyester | marking | CE |
| Width | 5.2 in (132 mm) | Height | 2.9 in (74 mm) |
| Depth | 1.7 in (43 mm) | cut-out dimensions | 119.4 (+/- 0.5) x 63 (+/- 0.4) mm |
| Net Weight | 0.79 lb(US) (0.36 kg) | Messages display capacity | 2 lines of 20 characters |
| Downloadable protocols | Uni-TE<br />Modbus | Standards | IEC 60068-2-27<br />UL 508<br />IEC 61131-2<br />CSA C22.2 No 14<br />IEC 60068-2-6 |
| Product Certifications | ATEX zone 2/22<br />UL 1604<br />CSA Class 1 Division 2<br />UL Class 1 Division 2 | Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 0…85 % without condensation |
| IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel outdoor use) |
| Shock resistance | 15 gn 11 ms | Vibration resistance | +/- 3.5 mm 2…8.45 Hz)<br />1 gn 8.45…150 Hz) |
Specifications may be subject to change without notice
