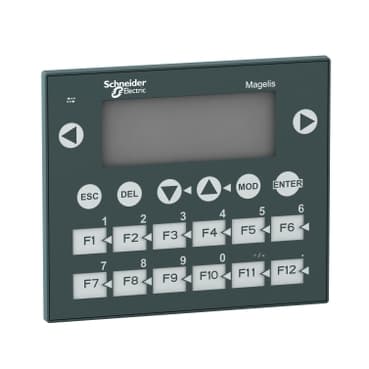

XBTR410
Product ID:36622
Updated: 2026/7/14
Key Features
- 1Support serial links via SUB-D 25 and RS232C/RS485 for seamless communication.
- 2Feature a 122 x 32 pixel backlit LCD for clear visibility in all conditions.
- 3Equip 20 keys with 12 customizable options for application-specific control.
- 4Offer 512 kB of flash memory for reliable application and alarm data storage.
- 5Ensure compatibility with Modicon M340, Momentum, Quantum, and other major PLCs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Magelis XBTR | Display Resolution | 122 x 32 pixels |
| Software Type | Configuration software | Software Designation | Vijeo Designer Lite |
| Operating System | Windows | Display Type | Matrix backlit LCD |
| Character font | Latin<br />Katakana<br />Greek<br />Cyrillic<br />Chinese (simplified Chinese) | Supply voltage limits | 18…30 V |
| Residual ripple | <= 1200 MV | Power Consumption in W | 5 W |
| Number of key | 20 | Number of fixed keys | 8 |
| Number of customisable keys | 12 | Number of pages | 256 alarm pages<br />200 application pages |
| Memory type | Flash | Memory capacity | 512 KB |
| Integrated connection type | Serial link female SUB-D 25, asynchronous RS232C/RS485)multidrop<br />Power supply removable screw terminal block | Realtime clock | Access to the PLC real-time clock |
| Range Compatibility | Twido<br />Modicon TSX Micro<br />Modicon Quantum<br />Modicon Momentum<br />Modicon Premium<br />Modicon M340 | Product mounting | Flush mounting |
| Fixing mode | By 4 spring clips | Display material | Polyester |
| Front material | PPT | Keypad material | Polyester |
| marking | CE | Height | 4.6 in (118 mm) |
| Width | 5.4 in (137 mm) | Depth | 1.5 in (39 mm) |
| cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm | Net Weight | 1.21 lb(US) (0.55 kg) |
| Product or Component Type | Small panel with keypad | Display colour | Green |
| display capacity | 1 line of 5 characters minimum<br />4 lines of 20 characters maximum | [Us] rated supply voltage | 24 V DC |
| Supply | External source | Downloadable protocols | Third party protocols<br />Modbus<br />Uni-TE |
| Standards | UL 508<br />IEC 60068-2-27<br />IEC 60068-2-6<br />IEC 61131-2<br />CSA C22.2 No 14 | Product Certifications | CSA Class 1 Division 2<br />ATEX zone 2/22<br />UL Class 1 Division 2<br />UL 1604 |
| Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 0…85 % without condensation | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel outdoor use) | Shock resistance | 15 gn 11 ms |
| Vibration resistance | +/- 3.5 mm 2…8.45 Hz)<br />1 gn 8.45…150 Hz) |
Specifications may be subject to change without notice
