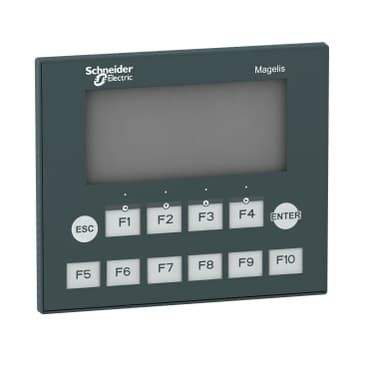

XBTRT500
Product ID:36904
Updated: 2026/7/14
Key Features
- 1Adopt a compact design weighing only 0.55 kg for space-constrained panels.
- 2Utilize a high-resolution 198 x 80 pixel matrix screen for clear data display.
- 3Operate via an integrated keypad with 12 keys, including 10 customizable function keys.
- 4Connect seamlessly to Modicon M340, TSX Micro, Twido, and Premium PLCs.
- 5Rely on a 2-year manufacturer warranty for guaranteed reliability and support.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Magelis XBTRT | Display Resolution | 198 x 80 pixels |
| Software Type | Configuration software | Software Designation | Vijeo Designer Lite |
| Operating System | Windows | Display Type | Extra-bright matrix backlit LCD |
| Touch panel | Matrix | Touch sensitive zone | 11 x 5 cells |
| Character font | Latin<br />Chinese (simplified Chinese)<br />Cyrillic<br />Katakana<br />Greek | Number of key | 12 |
| Number of fixed keys | 2 | Number of customisable keys | 10 |
| Number of pages | 256 alarm pages<br />200 application pages | Memory type | Flash |
| Memory capacity | 512 KB | Integrated connection type | Serial link female RJ45, asynchronous RS232C/RS485)point-to-point |
| Realtime clock | Access to the PLC real-time clock | Range Compatibility | Modicon M340<br />Modicon Premium<br />Twido<br />Modicon TSX Micro |
| Product mounting | Flush mounting | Fixing mode | By 4 spring clips (1.5 to 6 mm thick panel) |
| Display material | Polyester | Front material | PPT |
| Keypad material | Polyester | marking | CE |
| Height | 4.6 in (118 mm) | Width | 5.4 in (137 mm) |
| Depth | 3.1 in (79 mm) | cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
| Net Weight | 1.21 lb(US) (0.55 kg) | Product or Component Type | Small panel with touchscreen and keypad |
| Display colour | Green | display capacity | 10 lines of 33 characters maximum<br />2 lines of 5 characters minimum<br />Graphic objects (bargraph, button, light...) |
| [Us] rated supply voltage | 5 V DC | Supply | From PLC (terminal port) |
| Downloadable protocols | Third party protocols<br />Uni-TE<br />Modbus | Standards | IEC 61131-2<br />CSA C22.2 No 14<br />IEC 60068-2-27<br />UL 508<br />IEC 60068-2-6 |
| Product Certifications | UL 1604<br />ATEX zone 2/22<br />CSA Class 1 Division 2<br />UL Class 1 Division 2 | Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 0…85 % without condensation |
| IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel indoor use) |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Vibration resistance | +/- 3.5 mm 2…8.45 Hz)IEC 60068-2-6<br />1 gn 8.45…150 Hz)IEC 60068-2-6 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Specifications may be subject to change without notice
